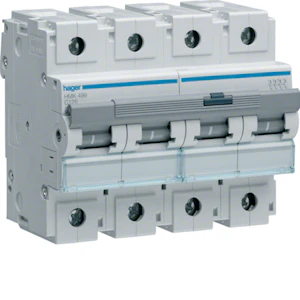

MCB HMK499 4X8125A CURVE C 30KA
Product code
3263547
MCB 4P 30kA C-125A 6M
MCB 4P 30kA C-125A 6M
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current125 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6000 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V60 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V30 kA
Frequency50 - 60 Hz
Current limiting class3
Product codes
SAPAFB673
STK3263547
PLC3263547
GTIN/EAN3250613230609
Manufacturer part numberHMK499
Vendor material number3263547
Basic information
Package measurements (L x W x H)95 x 118 x 80 mm
Package volume0.897 l
Package weight0.99 kg
Base uniteach
Package units1 / 12 / 288
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
