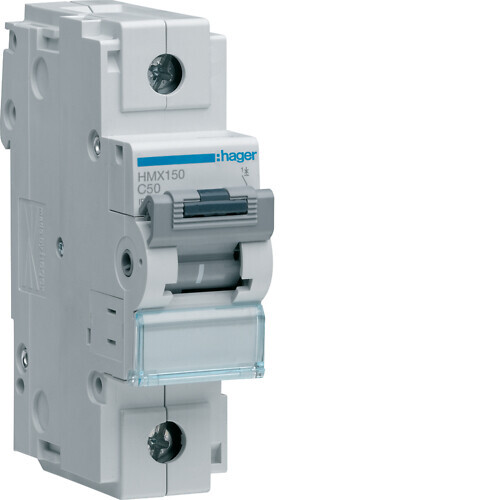

MCB HMX150 1X50A CURVE C 50KA
Product code
3263554
MCB 1P 50kA C-50A 1.5M
1-pole C-curve circuit breaker, 50 A, rated breaking capacity 50 kA.
Features- standards: IEC 69898; IEC 40946-2, EN 60898-1, EN 60947-2, RoHS EC2002/95, ISO 1400, OHSAS 18000
- reinforced terminal block
- parallel connection on load side with floor terminal
- integrated locking mechanism and label plate on lever
- standard additional modules可连接
- rated breaking capacity: 50 kA
- rated voltage 240/415 V
- touch-proof IP2X
- accessories: additional modules, terminal covers, and separation plates
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current50 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V50 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
Frequency50 - 60 Hz
Current limiting class3
Flush-mounted installationyes
Product codes
SAPAIU926
STK3263554
PLC3263554
GTIN/EAN3250613231873
Manufacturer part numberHMX150
Vendor material number3263554
Basic information
Package measurements (L x W x H)40 x 95 x 80 mm
Package volume0.304 l
Package weight0.26 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
