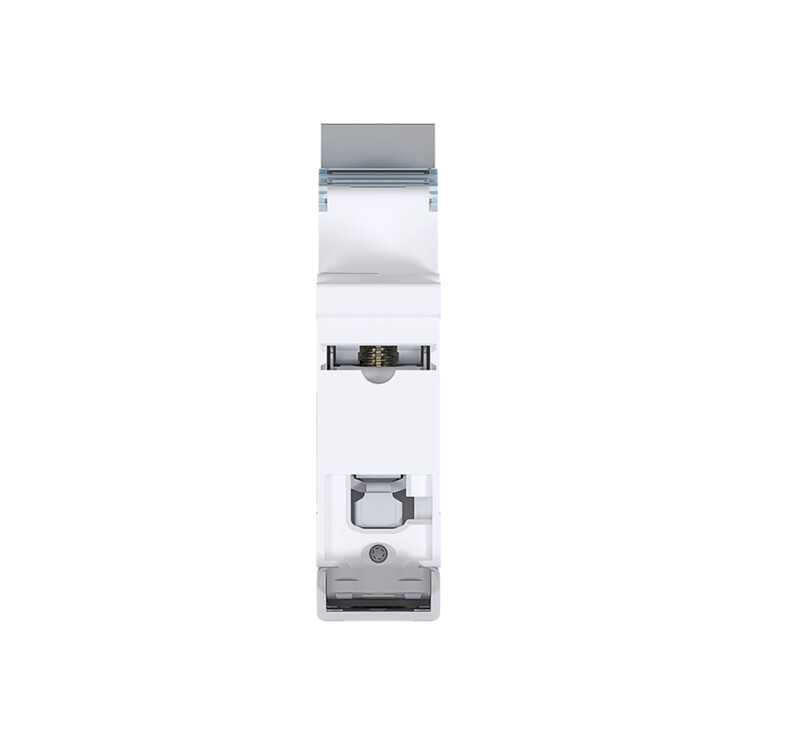

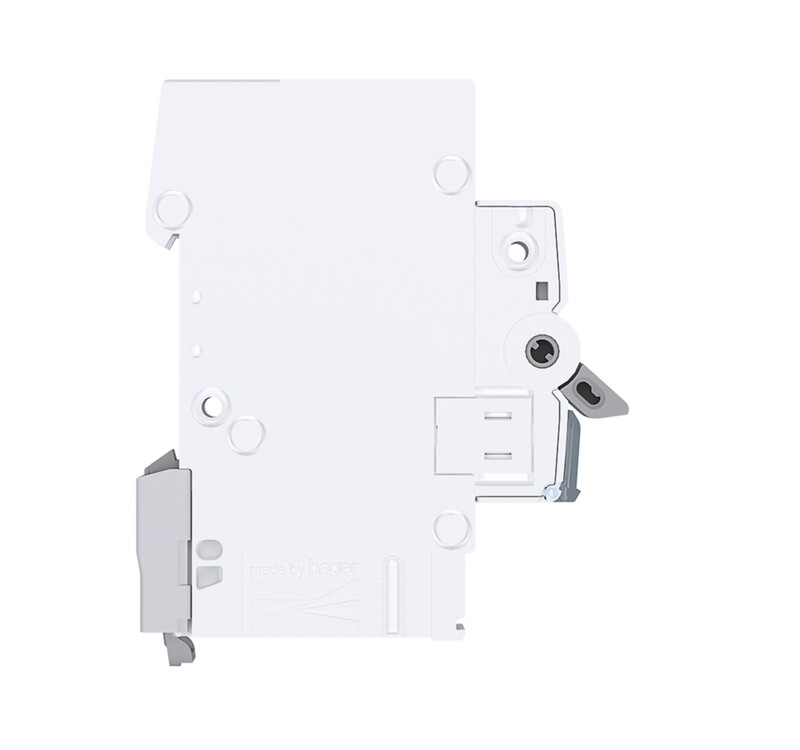

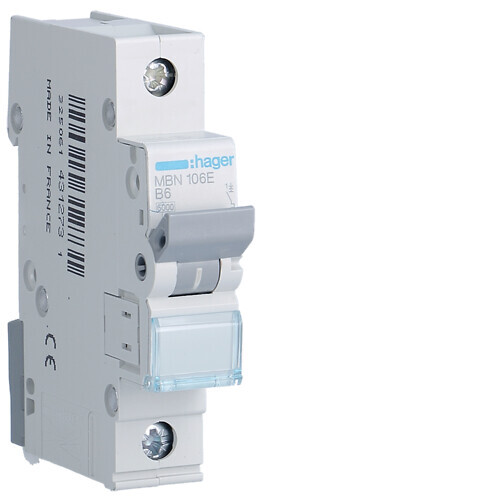

MCB MBN106E 1X6A B-CURVE 6KA

Product code
3246106
MCB 1P 6kA B-6A 1M
MCB 1P 6kA B-6A 1M

Product details

Technical specifications

Built-in depth70 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current6 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Frequency50 ... 60 Hz
Current limiting class3
Flush-mounted installationtrue
Concurrently switching neutral conductorfalse

Product codes

SAPADD553
PLC3246106
STK3246106
GTIN/EAN3250614312731
Manufacturer part numberMBN106E
Vendor material number3246106

Basic information

Package measurements (L x W x H)88 x 16 x 74 mm
Package volume0.104 l
Package weight0.108 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents
UNSPSC39121603
BrandHAGER
VendorUTU OY
