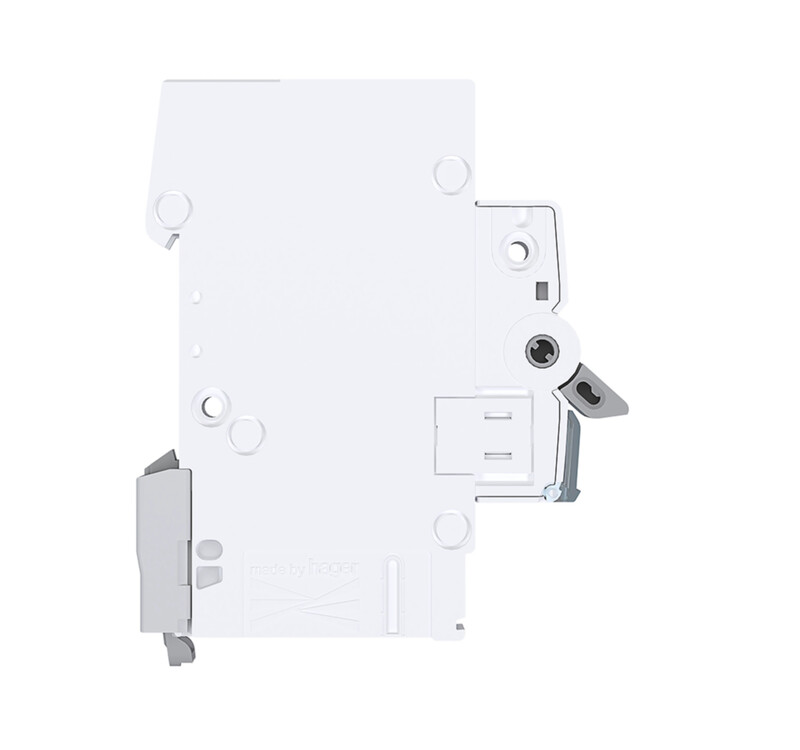

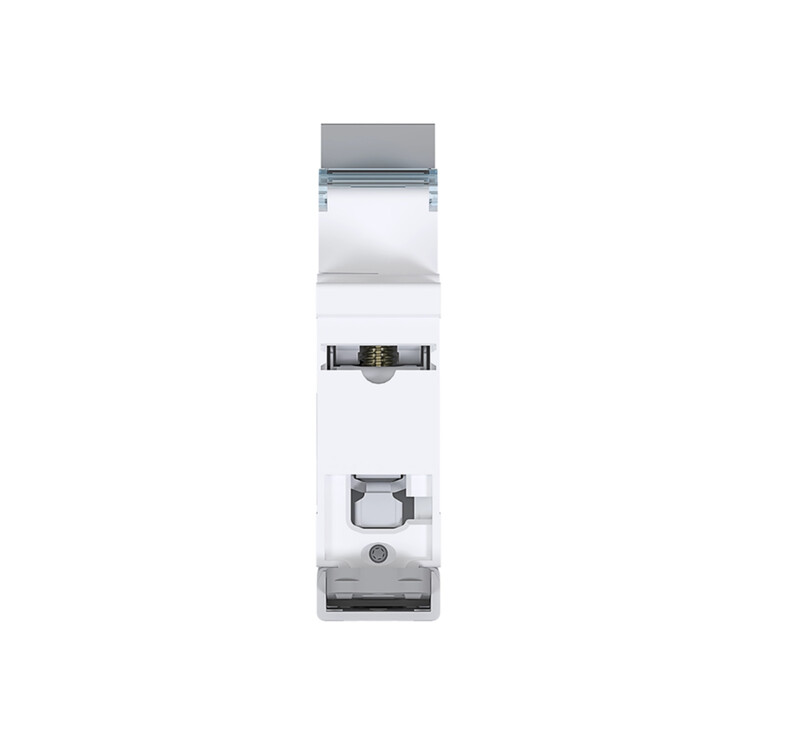

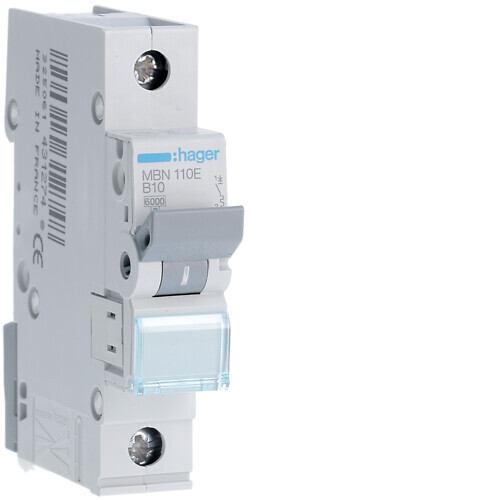

MCB MBN110E 1X10A B-CURVE 6KA
Product code
3246110
MCB 1P 6kA B-10A 1M
1-pole 6kA B-curve 10A circuit breaker, size 1 module. Complies with DIN EN 60898-1 (VDE 0641 part 11): 2003-12, EN 60898-1, A1: 2003. Touch protection IP2x according to DIN VDE 0106 part 100. The circuit breaker is equipped with a thermal trip mechanism for overload protection and an electromagnetic trip mechanism for short-circuit protection. Can be fitted with optional add-on modules. The device is equipped with a status window and can be replaced from the DIN rail by releasing the DIN rail clip to the end position. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current10 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
Current limiting class3
Flush-mounted installationyes
Concurrently switching neutral conductorno
Overvoltage category3
Product codes
SAPADD554
STK3246110
PLC3246110
GTIN/EAN3250614312748
Manufacturer part numberMBN110E
Vendor material number3246110
Basic information
Package measurements (L x W x H)87 x 17 x 74 mm
Package volume0.109 l
Package weight0.088 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1138
GWP, uniteach
Source for GWP dataEPD
