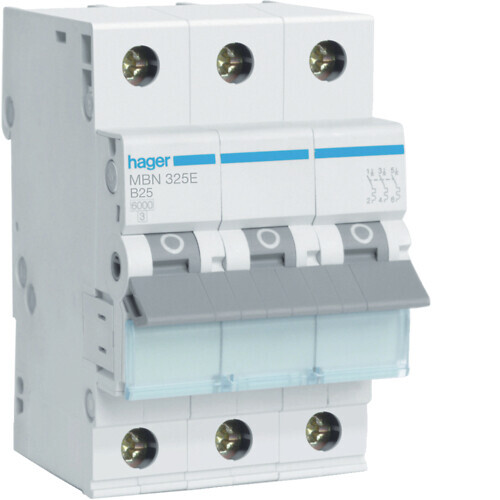

MCB MBN325E 3X25A B-CURVE 6KA
Product code
3246325
MCB 3P 6kA B-25A 3M
3-pole 6kA B-curve 25A circuit breaker, 3 module size. Complies with DIN EN 60898-1 (VDE 0641 part 11): 2003-12, EN 60898-1, A1: 2003. Touch protection IP2x according to DIN VDE 0106 part 100. The circuit breaker is equipped with a thermal trip mechanism for overload protection and an electromagnetic trip mechanism for short-circuit protection. Can be fitted with additional modules for rear mounting. The device is equipped with a status window and can be replaced from the DIN rail by releasing the DIN rail clip to the end position. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicB
Number of poles (total)3
Number of protected poles3
Rated current25 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Current limiting class3
Flush-mounted installationyes
Concurrently switching neutral conductorno
Product codes
SAPADD575
STK3246325
PLC3246325
GTIN/EAN3250614313080
Manufacturer part numberMBN325E
Vendor material number3246325
Basic information
Package measurements (L x W x H)88 x 52 x 74 mm
Package volume0.339 l
Package weight0.304 kg
Base uniteach
Package units4 / 48 / 1152
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3932
GWP, uniteach
Source for GWP dataEPD
