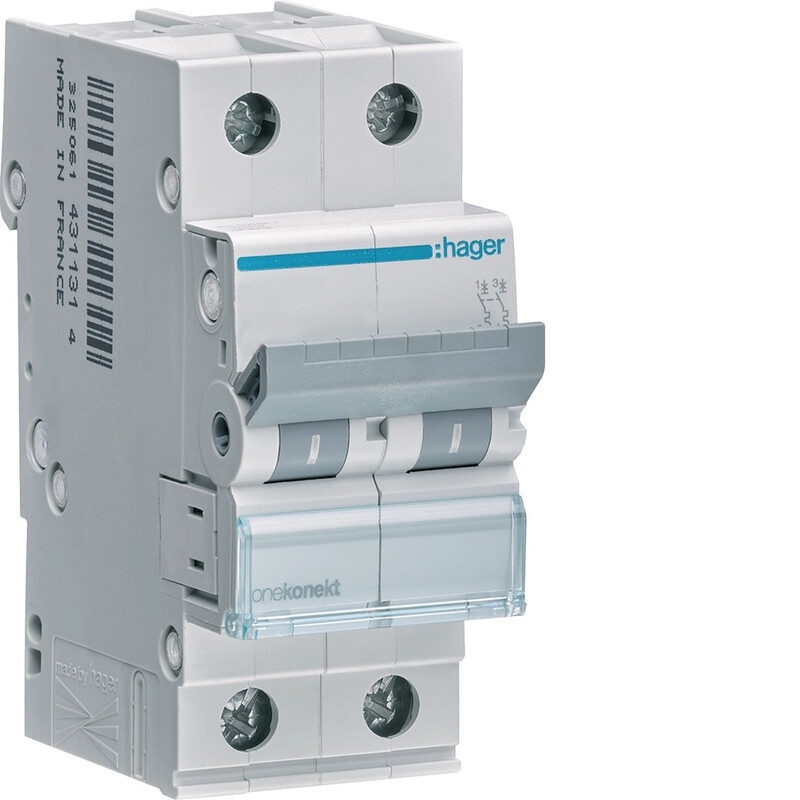

MCB MCN225 2X25A C-CURVE 6KA
Product code
3246634
No product description available.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current25 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 - 60 Hz
Current limiting class3
Concurrently switching neutral conductorno
Product codes
SAPCXX994
STK3246634
PLC3246634
GTIN/EAN3250614311321
Manufacturer part numberMCN225
Vendor material number3246634
Basic information
Package measurements (L x W x H)127.2 x 286 x 97 mm
Package volume3.529 l
Package weight218 kg
Base uniteach
Package units1 / 6 / 72 / 1728
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
