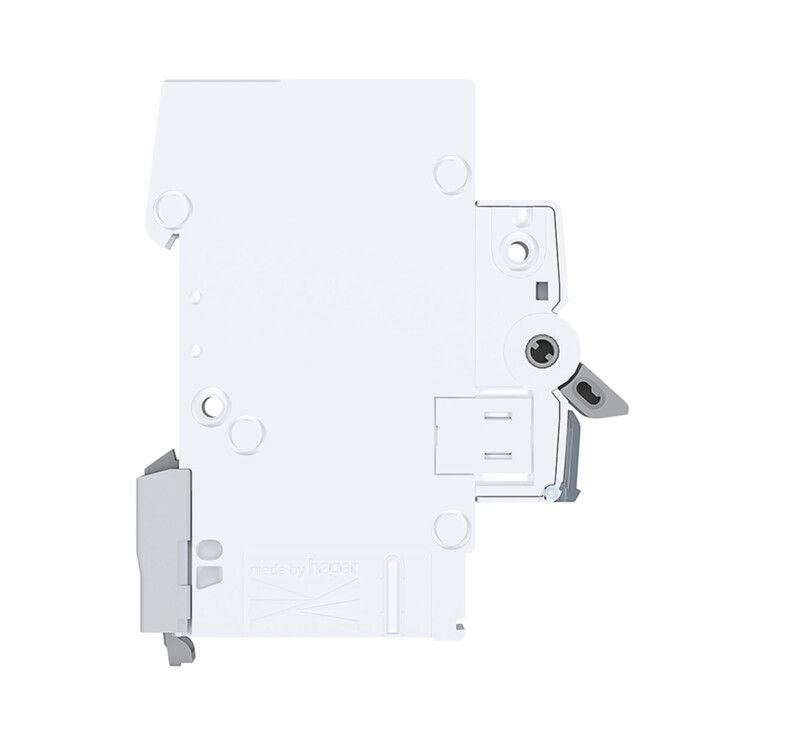

MCB MCN432 4X32A C-CURVE 6KA
Product code
3246646
No product description available.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current32 A
Rated voltage415 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 - 60 Hz
Current limiting class3
Concurrently switching neutral conductorno
Overvoltage category3
Pollution degree2
Product codes
SAPDNS587
STK3246646
PLC3246646
GTIN/EAN3250614311635
Manufacturer part numberMCN432
Vendor material number3246646
Basic information
Package measurements (L x W x H)80 x 100 x 80 mm
Package volume0.64 l
Package weight0.484 kg
Base uniteach
Package units1 / 3 / 36 / 864
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
