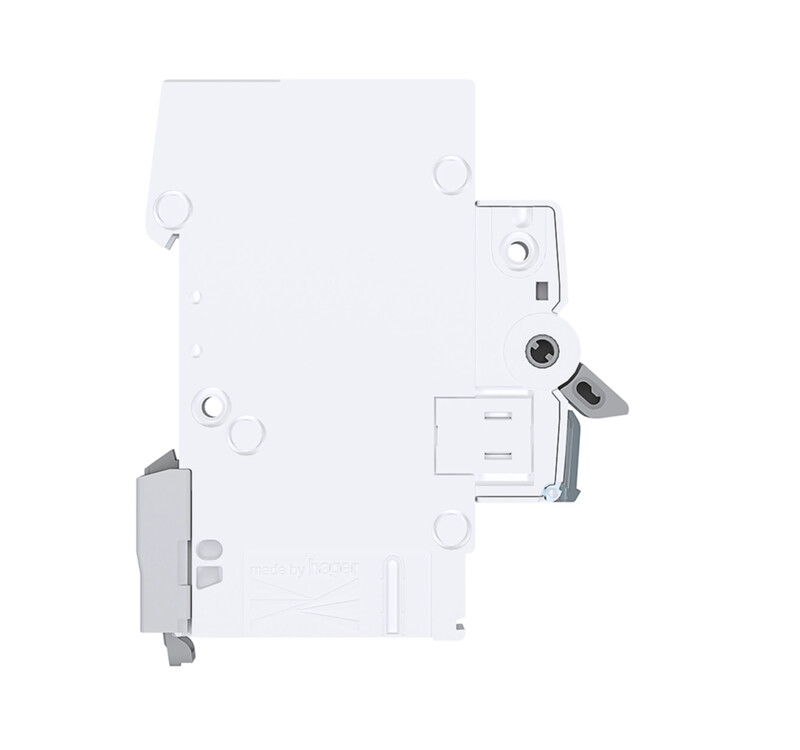

MCB MCN663 3+N 63A CURVE C 6KA
Product code
3248893
Circuit breaker 3L+N 6kA C-curve 63A, 4 module size. Complies with DIN EN 60898-1 (VDE 0641 part 11): 2003-12, EN 60898-1, A1: 2003. Touch protection IP2x according to DIN VDE 0106 part 100. The circuit breaker is equipped with a thermal trip mechanism for overload protection and an electromagnetic trip mechanism for short-circuit protection. Can be fitted with optional add-on modules. The device is equipped with a status window and can be replaced by releasing the DIN rail clip and moving it to the end position. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicC
Number of poles (total)4
Number of protected poles3
Rated current63 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50-60 Hz
Power loss18.3 W
Current limiting class3
Product codes
SAPAFB661
STK3248893
PLC3248893
GTIN/EAN3250614311963
Manufacturer part numberMCN663E
Vendor material number3248893
Basic information
Package measurements (L x W x H)87 x 73 x 73 mm
Package volume0.445 l
Package weight0.51 kg
Base uniteach
Package units1 / 3 / 36 / 864
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.6596
GWP, uniteach
Source for GWP dataEPD
