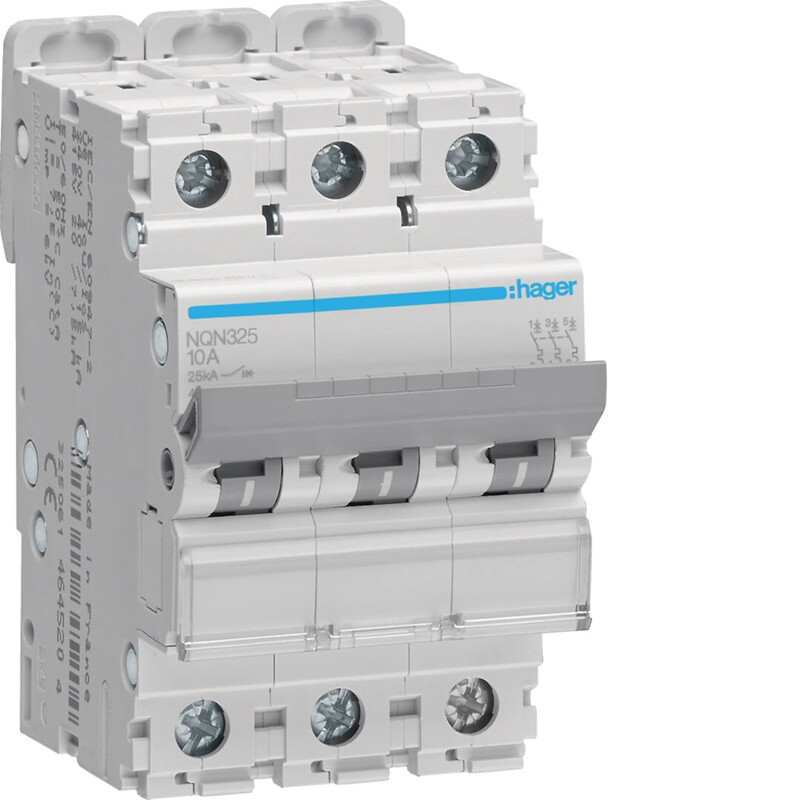

MCB NQN325 3X25A CURVE B 25KA
Product code
3263734
3-pole circuit breaker 25 kA C-curve 25 A, size 3 modules. Circuit protection according to IEC 60947-2. Touch protection IP2x according to DIN VDE 0106 part 100. The circuit breaker is equipped with a thermal trip mechanism for overload protection and an electromagnetic trip mechanism for short-circuit protection. It can be fitted with additional modules for rear mounting. The device is equipped with a viewing window and can be replaced from the DIN rail by releasing the DIN rail clip to the end position. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth70 mm
Release characteristicB
Number of poles (total)3
Number of protected poles3
Rated current25 A
Rated voltage415 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Frequency50-60 Hz
Current limiting class3
Product codes
SAPALZ962
STK3263734
PLC3263734
GTIN/EAN3250614645785
Manufacturer part numberNQN325
Vendor material number3263734
Basic information
Package measurements (L x W x H)60 x 100 x 80 mm
Package volume0.48 l
Package weight0.4 kg
Base uniteach
Package units1 / 36 / 840
Package contents–
UNSPSC39121603
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.5173
GWP, uniteach
Source for GWP dataEPD
