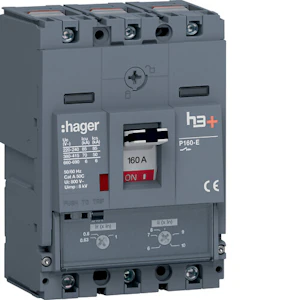

MCCB P160 TM 3P 160A 70kA

The h3+ p160 compact circuit breaker with an adjustable thermal-magnetic trip unit (TM) is a 3-pole, 160A, 70kA device. Compliant with standard DIN EN 60947-2, the compact circuit breaker protects electrical installations and networks against overload and short circuit. The thermal trip (Ir) for overload protection and the magnetic trip (Ii) for instantaneous short-circuit protection can be set independently.

The breaker has three operating positions, identifiable by the lever position (ON = up, OFF = down, trip = middle position). The device is equipped with an integrated locking mechanism in the lever, allowing it to be locked in either the ON or OFF position using a standard padlock without additional accessories. The trip mechanism can be tested and the main contacts opened using the test button.

A hinged cover with a fixed quick-lock screw enables access to the installation space for optional auxiliary contacts and other additional modules. Installed additional modules are visible and identifiable without opening the hinged cover.
