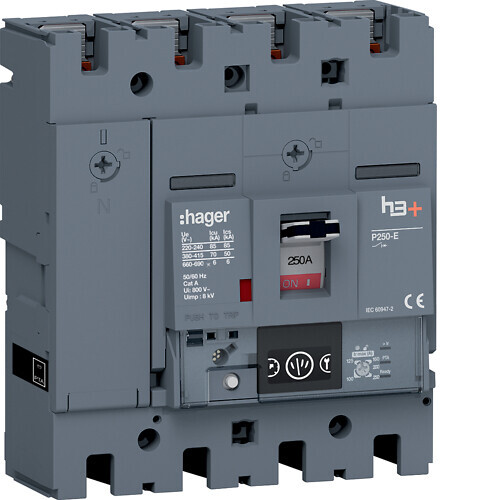

MCCB P250 ENERGY 4P 250A 70kA

The compact circuit breaker h3+ p250 with integrated and adjustable electronic protection relay (Energy) is a 4-pole 250A 70kA device. Compliant with standard DIN EN 60947-2, the compact circuit breaker protects electrical installations and networks against overload and short circuit. The thermal trip (Ir) for overload protection and the magnetic trip (Ii) for instantaneous short-circuit protection can be set independently. The breaker has three operating positions, identifiable by the lever position (ON = up, OFF = down, tripped = middle position). The device is equipped with an integrated locking mechanism on the lever that allows it to be locked in the ON or OFF position using a standard padlock without additional accessories. The tripping mechanism can be tested and the main contacts opened using the test button. The hinged cover with a fixed quick-lock screw enables access to the installation space for optional auxiliary contacts and other additional modules. Installed additional modules are visible and identifiable without opening the hinged cover. This product description is an automated translation of the original Finnish description.
