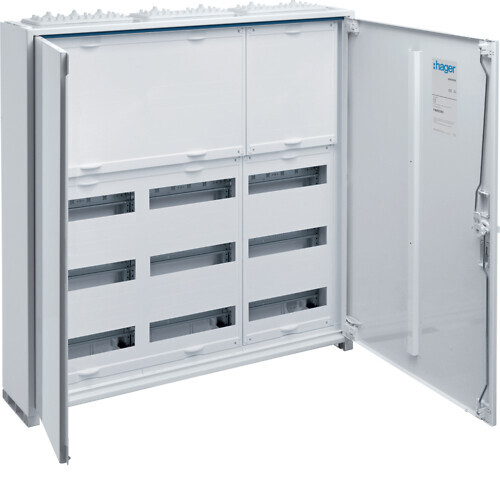

MODULE COVER SURFACE/RECESS FWB53N 800X800 108MOD IP44

Surface-mounted standardized central enclosure for mounting modular components according to EN 61 439-1 / -3, dimensioned according to DIN 43 870. Suitable for installation of devices up to 125 A, with air and insulation clearances according to VDE 0110 / 1-2. The enclosure frame and door structure are made of powder-coated steel. The enclosure is equipped with 7.5 mm rails for DIN rails spaced at 125 mm intervals, with DIN-perforated touch protection covers, except for the two uppermost DIN rail rows, which are fitted with solid touch protection covers for busbar and automation installations. The enclosure is equipped with multi-laminate plates on both ends for cable entries. The adjustable door hinges allow an opening angle of 110° and tool-free removal. The enclosure can be fitted with a key lock cover instead of a hand cover or a tool cover. See also other UniVers series accessories for comprehensive enclosure customization. This product description is an automated translation of the original Finnish description.
