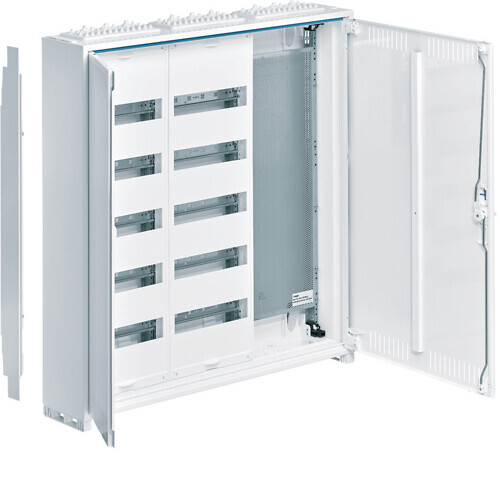

MODULE ENCLOSURE S/R UNIVERS FWB53K1 2X5X12M+MEDIA IP31

Field-structured modular enclosure for surface and flush mounting according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43 870. For devices up to 125 A rated current, air and creepage distances according to VDE 0110/1-2. Enclosure frame and molded door made of powder-coated steel sheet. Enclosure with two doors. Left-side module fields equipped with 7.5 mm high DIN rails spaced 125 mm apart and finger guards. These fields are also equipped with PE/N-QuickConnect connectors mounted on a connector holder. Data installation field equipped with a mounting plate mounted on perforated support rails without touch protection. Internal touch protection (SKII) made of plastic, cable entries with removable plastic flaps and separation plate between data installation area and DIN area. Door with adjustable internal hinges and opening angle up to 130°. Door handedness reversible. Door lock standard with three-point rod lock and sealable. Optional additional locks available, see accessories. Height of installed product: 800 mm Width of installed product: 800 mm Depth of installed product: 161 mm Number of modules: 120 Protection class: II Ingress protection rating: IP31 RAL color code: 9010 Color: pure white Number of enclosure rows: 5 Enclosure material: steel sheet Door lock type: three-point rod lock This product description is an automated translation of the original Finnish description.
