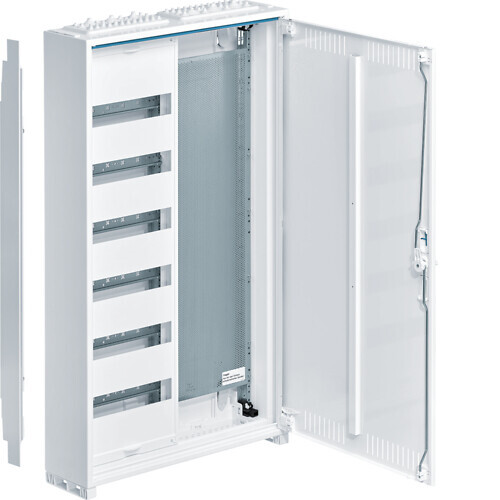

MODULE ENCLOSURE S/R UNIVERS FWB62K1 6X12M+MEDIA IP31

Field-structured modular enclosure for surface and flush mounting according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. For devices up to 125 A rated current, air and creepage distances according to VDE 0110/1-2. Enclosure frame and molded door made of powder-coated steel sheet. Enclosure with one door. Left-side module fields equipped with 7.5 mm high DIN rails spaced 125 mm apart and finger guards. These fields are also equipped with PE/N-QuickConnect connectors mounted on a connector holder. Data installation field equipped with a mounting plate mounted on perforated support rails without touch protection. Internal touch protection (SKII) made of plastic, cable entries with removable plastic flaps and breakaway elements and separation plate between data installation area and DIN area. Door with adjustable internal hinges and opening angle up to 130°. Door handing reversible. Door frame可配备锁具或可加装可选的密封配件。 Installed product height: 950 mm Installed product width: 550 mm Installed product depth: 161 mm Number of modules: 72 Protection class: II Ingress protection rating: IP31 RAL color code: 9010 Color: pure white Number of rows in enclosure: 6 Enclosure material: steel sheet Door locking type: Three-point rod lock This product description is an automated translation of the original Finnish description.
