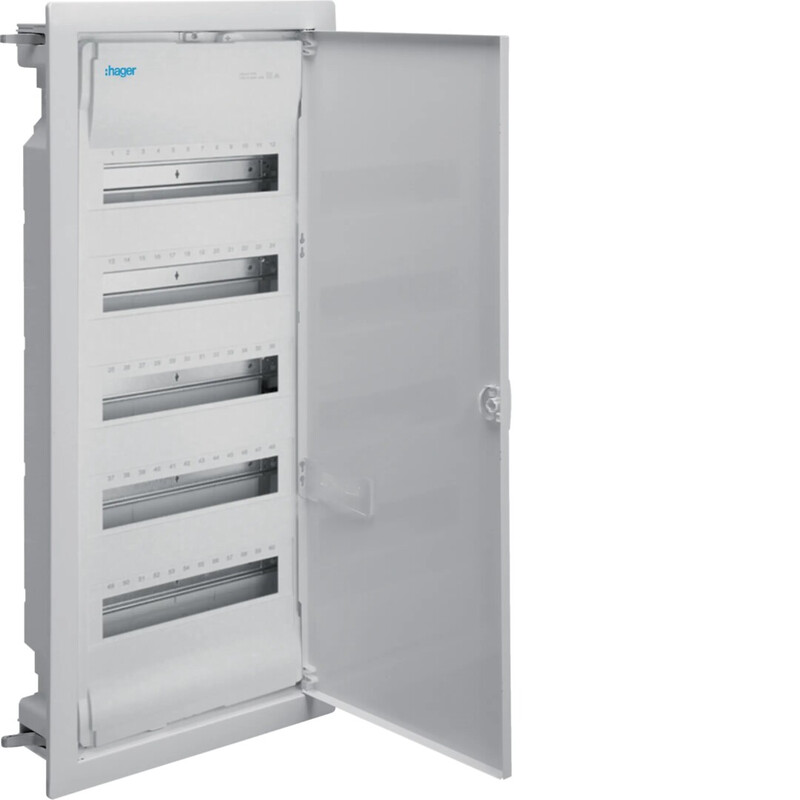

MODULE COVER RECESS VH60NC 5X12M IP30 FE/PS
Product code
3427592
HW mounting enclosure, Volta, 60 M
Module enclosure for 60 DIN-dimensioned module components with a metal door frame and a plastic recessed box. Recessed installation into lightweight partition walls. Minimum recess depth of 88 mm when installed without a separately ordered mounting frame. Mounting to a stud wall using included mounting anchors that enable both vertical and horizontal mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board (EC000214)
Mounting methodHollow wall
Number of rows5
Width in number of modular spacings12
Type of coveringDoor
Cover modelWith notch
Transparent cover/doorno
With lockno
Type of closureOther
Housing materialPlastic
Built-in depth90 mm
Built-in height845 mm
Built-in width314 mm
Inner depth91.5 mm
Earthing terminal blockyes
Neutral terminal blockyes
Product codes
SAPATL581
STK3427592
PLC3427592
GTIN/EAN3250616480216
Manufacturer part numberVH60NC
Vendor material number3427592
Basic information
Package measurements (L x W x H)890 x 355 x 100 mm
Package volume31.595 l
Package weight6.1 kg
Base uniteach
Package units1 / 2 / 30
Package contents–
UNSPSC39121304
BrandHAGER
VendorUTU OY
