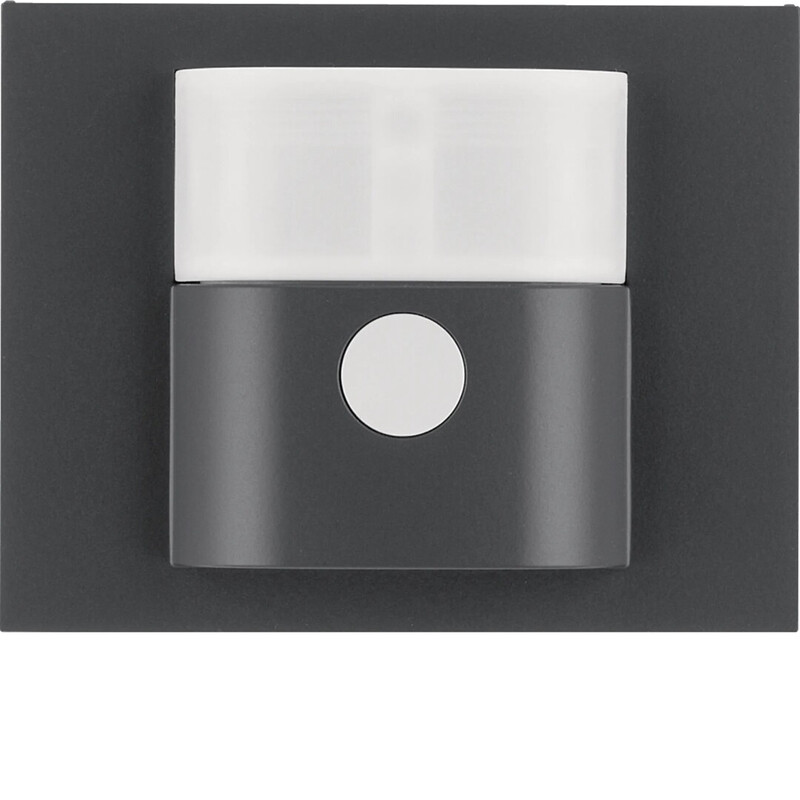

MOTION DETECTOR 180 1.1M IP20 COMFORT ANTHR.

IR motion sensor head 1.1 m Default installation height 1.1 m Range, front ≈ 12 m Range, side each ≈ 8 m Detection field, rectangular ≈ 12 x 16 m Delay time, fixed ≈ 180 s Response brightness, adjustable ≈ 5 ... 1000 lx, ∞ lx (day) Detection sensitivity, adjustable ≈ 10 ... 100 % Short-term state 200 ms non-response time ≈ 10 s Operating temperature -5 ... +45 °C Cover height from surface 34 mm Continuous direct sunlight pointing upward at the detection surface may cause the motion sensor to malfunction. Suitable for indoor use only! - Naturally low energy consumption - Memory function for simulating presence - Party function to switch on for 2 hours - Learning function via button for brightness threshold - Button lock - LED display for compatibility of application module/housing - Operating and status indication LED, red/green/orange - Microprocessor-controlled operating mode - On/off/auto via buttons - Detachable protection with separate screw Compatible housing units: Relay housing 85121200 Switching housing 1-channel 85121100 Push-button light dimmer (R, L) 85421100 General push-button light dimmer 1-channel 85421200 DALI/DSI dimmer housing 85421700 Extension unit for motion sensor 85320100 This product description is an automated translation of the original Finnish description.
