MOTION DETECTOR EE820 140D 10A IP55 PSE WH
Product code
2613307
IP55 Motion detector 140° white

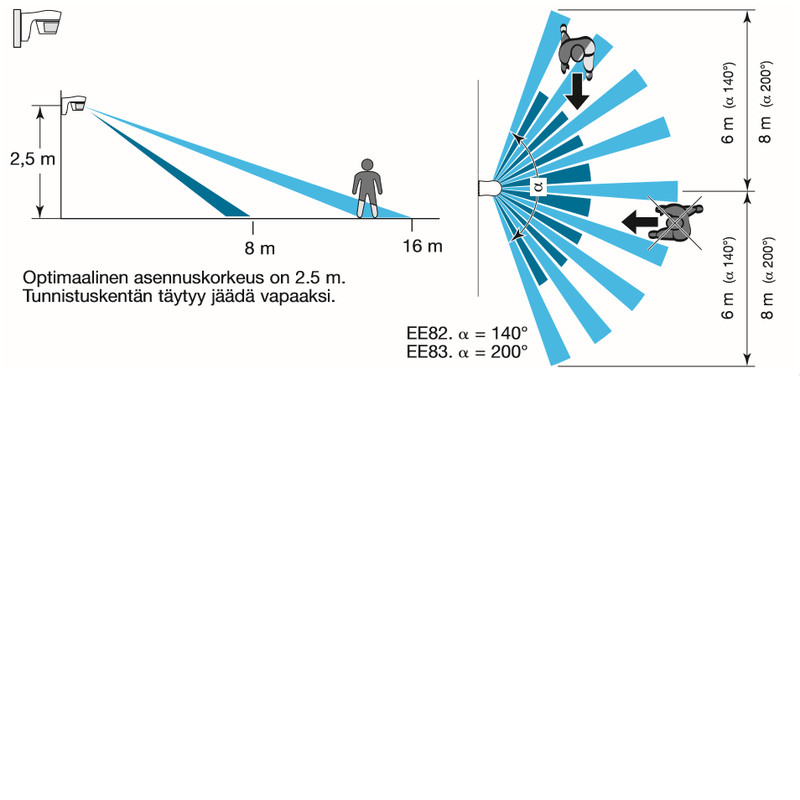

Motion sensor for outdoor use IP55, color white, detection angle 140°, detection range approx. 16 m. The sensor is equipped with a high-quality 10A relay contact suitable for switching energy-efficient lamps. The sensor can be mounted directly on a wall surface, or with the optional bracket EE825 for corner mounting or EE827 for ceiling mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sensor element for movement sensor/presence detector (EC000138)
Mounting methodSurface mounted
Constant light controlno
HVAC-controlno
Networkableyes
Suitable for wireless transmissionno
Creep-under protectionno
Mounting height2.5 m
Max. reach sideways8 m
Max. reach frontally16 m
Response value sensitivity adjustableyes
Response value luminosity adjustableyes
Teach-function for response value luminosityyes
Dim function with dimmer basic elementno
Animal zoneno
Staircase light controllerno
Product codes
SAPAFD391
STK2613307
PLC2613307
GTIN/EAN3250612258208
Manufacturer part numberEE820
Vendor material number2613307
Basic information
Package measurements (L x W x H)110 x 96 x 140 mm
Package volume1.478 l
Package weight0.342 kg
Base uniteach
Package units1 / 12 / 288
Package contents–
UNSPSC46171608
BrandHAGER
VendorUTU OY
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0376
GWP, uniteach
Source for GWP dataEPD
