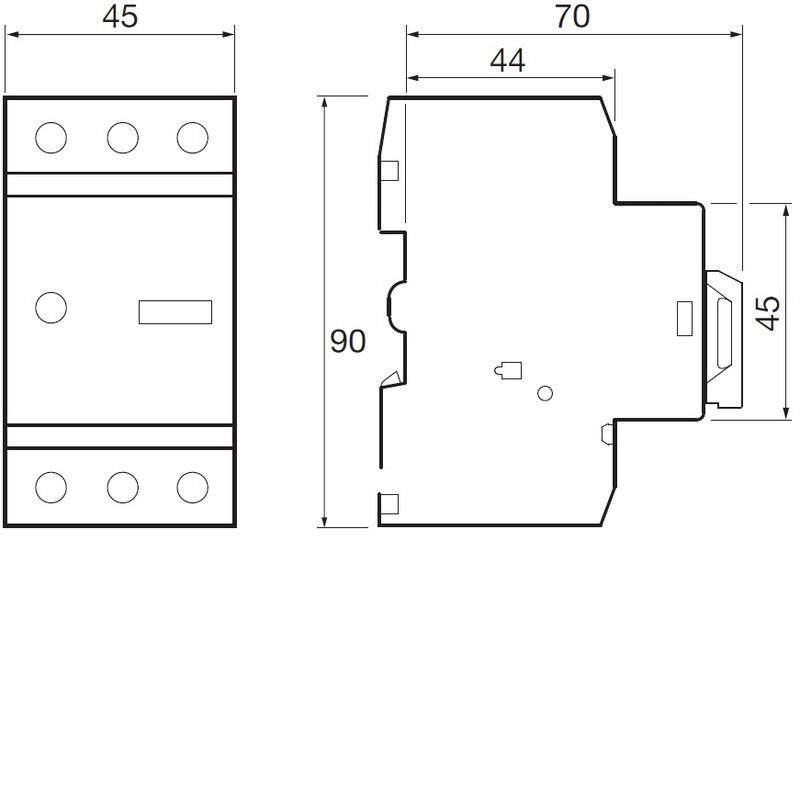

MOTOR CIRCUIT-BREAKER MM505N 0.63 - 1,0 A
Product code
3748005
Motor starter 0.63-1.0A 2.5M
Motor protection circuit breaker, 3-pole, K-curve, adjustable 0.63 - 1.00 A, rated operating voltage 230/690 VAC. For overload and short-circuit protection of motor circuits. Can be equipped with separately orderable additional modules. Mounting on DIN rail or in a separately orderable starter enclosure MZ521N. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Overload release current setting0.63 - 1 A
Adjustment range undelayed short-circuit release11.2 - 16.8 A
Phase failure sensitiveyes
Switch off techniqueThermomagnetic
Rated operating voltage230 - 690 V
Rated permanent current Iu1 A
Rated operation power at AC-3, 230 V0.12 kW
Rated operation power at AC-3, 400 V0.25 kW
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchno
With integrated under voltage releaseno
Number of poles3
Rated short-circuit breaking capacity Icu at 400 V, AC150 kA
Product codes
SAPACS659
STK3748005
PLC3748005
GTIN/EAN3250614435058
Manufacturer part numberMM505N
Vendor material number3748005
Basic information
Package measurements (L x W x H)50 x 100 x 80 mm
Package volume0.4 l
Package weight0.24 kg
Base uniteach
Package units1 / 72 / 1728
Package contents–
UNSPSC39121521
BrandHAGER
VendorUTU OY
