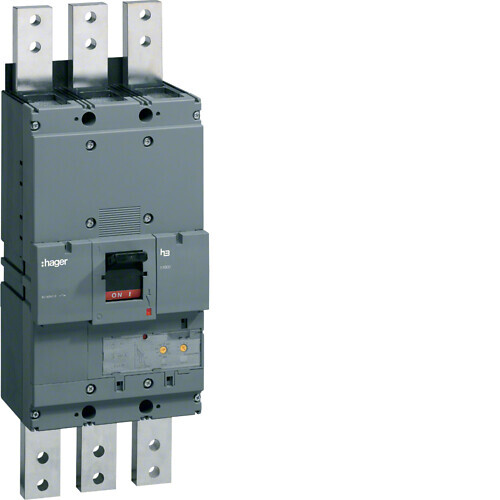

MOULDED CASE CIRCUIT BREAKER 3P 1600A 70KA

Name: MOULDED CASE CIRCUIT BREAKER 3P 1600A 70KA
Brand: HAGER
SKU: AME816

Product code

3636553

MCCB h1600 3P 70kA 1600A LSI

Compact circuit breaker, frame size h1600, 70 kA, 3-pole, electronically adjustable (LSI). Breaking capacity at voltage 400 V (EN 60947-2): 70 kA, rated operational voltage AC: 220/690 V.

Features

Adjustable long-time trip: 0.4 – 1 x In
Adjustable short-time and instantaneous trip curves
Adjustable short-time trip delay: 0.1 - 0.2 s
Electronic setting: LSI = long-time trip, S = short-time trip, I = instantaneous trip
Mounting on mounting plate or universal N-type mounting rail
Three operating states "ON", "OFF" and "trip" clearly identifiable from lever position
Terminal extensions
Mechanical test button
Functions can be expanded with various additional accessories - includes phase separation plates

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)

Rated permanent current Iu1600 A

Rated voltage220-690 V

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA

Overload release current setting640-1600 A

Adjustment range short-term delayed short-circuit release0 - 0 A

Adjustment range undelayed short-circuit release8960-19200 A

Power loss168.9 W

Device constructionBuilt-in device fixed built-in technique

Integrated earth fault protectionno

Type of electrical connection of main circuitScrew connection

Suitable for DIN rail (top hat rail) mountingno

DIN rail (top hat rail) mounting optionalno

Number of auxiliary contacts as normally closed contact0

Number of auxiliary contacts as normally open contact0

Number of auxiliary contacts as change-over contact0

Product codes

SAPAME816

STK3636553

PLC3636553

GTIN/EAN3250613349943

Manufacturer part numberHEF990H

Vendor material number3636553

Basic information

Package measurements (L x W x H)570 x 191 x 210 mm

Package volume22.863 l

Package weight30 kg

Base uniteach

Package units1 / 8

Package contents–

UNSPSC39121616

BrandHAGER

VendorUTU OY
