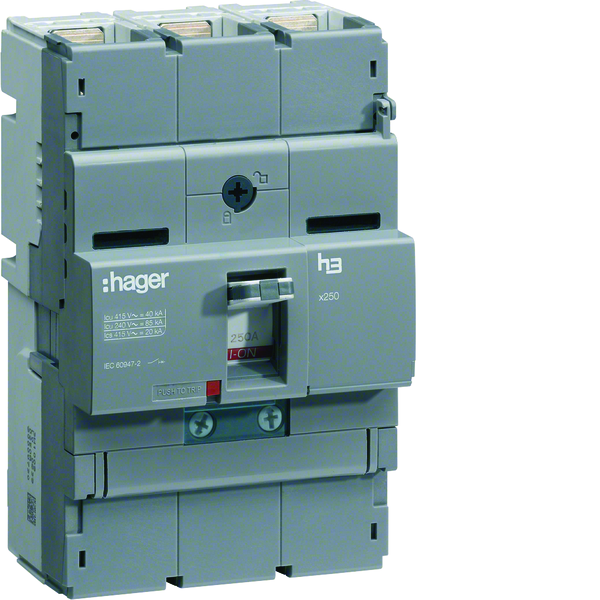

MOULDED CASE CIRCUIT BREAKER 3P 250A 40KA ADJ/ADJ
Product code
3636492
MCCB X250 3P 40kA 250A TM
Moulded Case Circuit Breaker X250 3P 40kA 250A TM
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu250 A
Rated voltage220 - 415 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz40 kA
Overload release current setting160 - 250 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release1250 - 2750 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalyes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME768
STK3636492
PLC3636492
GTIN/EAN3250613347772
Manufacturer part numberHNB250H
Vendor material number3636492
Basic information
Package measurements (L x W x H)165 x 96 x 105 mm
Package volume1.664 l
Package weight1.651 kg
Base uniteach
Package units1 / 6 / 144
Package contents–
UNSPSC39121616
BrandHAGER
VendorUTU OY
