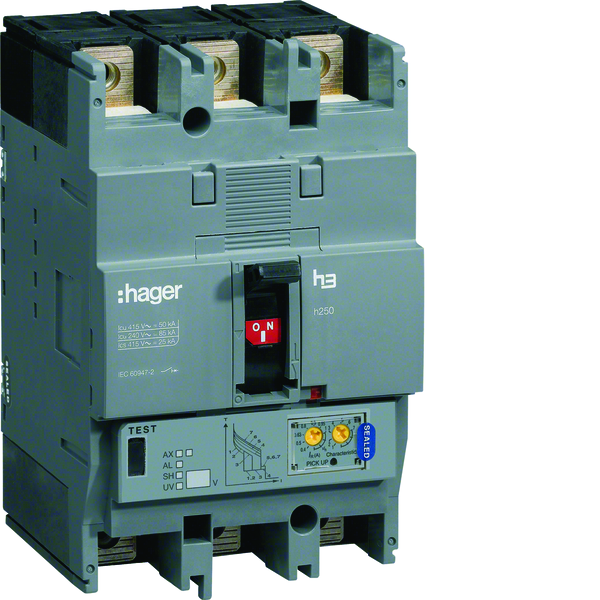

MOULDED CASE CIRCUIT BREAKER 3P 40-50-63A 70KA
Product code
3636519
MCCB h250 3P 70kA 40A LSI
Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu40 A
Rated voltage220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting16 - 40 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release224 - 520 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME785
STK3636519
PLC3636519
GTIN/EAN3250613340612
Manufacturer part numberHEC040H
Vendor material number3636519
