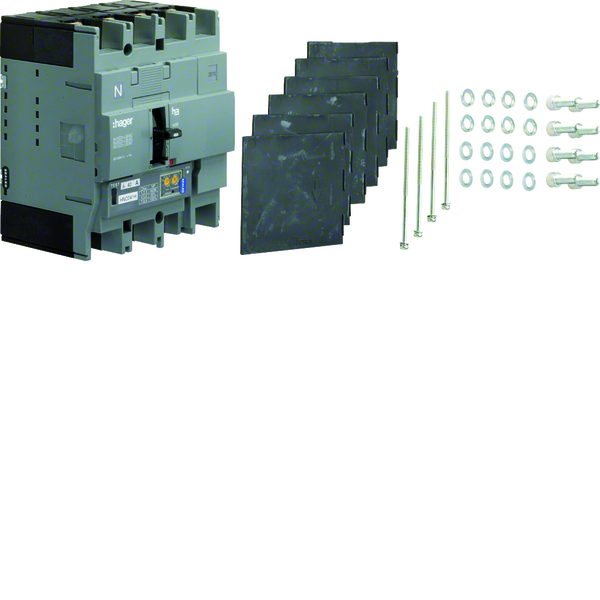

MOULDED CASE CIRCUIT BREAKER 4P 0% 40-50-63A 70KA
Product code
3636523
MCCB h250 4P 70kA 40A LSI
Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu40 A
Rated voltage220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting16 - 40 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release224 - 560 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME788
STK3636523
PLC3636523
GTIN/EAN3250613340643
Manufacturer part numberHEC041H
Vendor material number3636523
Basic information
Package measurements (L x W x H)165 x 125.5 x 140 mm
Package volume2.899 l
Package weight4 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121616
BrandHAGER
VendorUTU OY
