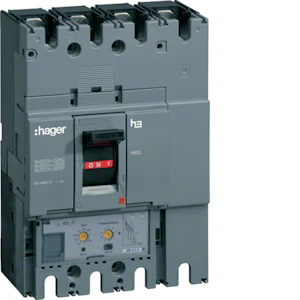

MOULDED CASE CIRCUIT BREAKER 4P 0%/50%/100% 160-400A 50KA
Product code
3636533
MCCB h630 4P 50kA 630A LSI
Moulded Case Circuit Breaker h630 4P 50kA 630A LSI
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu630 A
Rated voltage220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz50 kA
Overload release current setting250 - 630 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release3500 - 6300 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME796
STK3636533
PLC3636533
GTIN/EAN3250613349585
Manufacturer part numberHND631H
Vendor material number3636533
