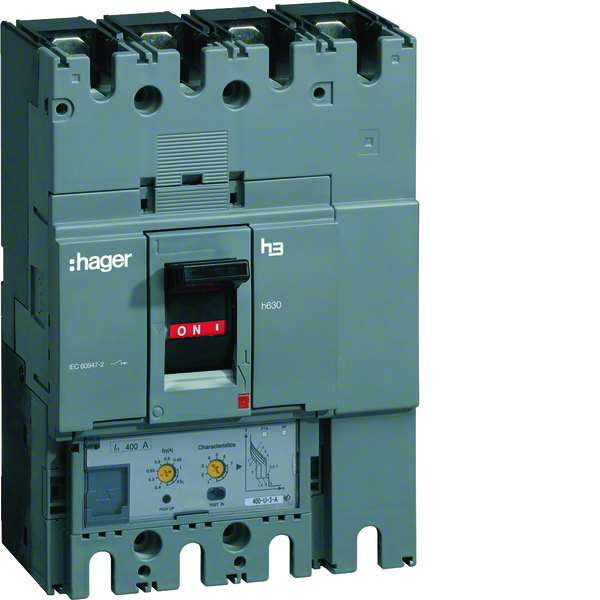

MOULDED CASE CIRCUIT BREAKER 4P 0%/50% 100-250A 70KA
Product code
3636537
MCCB h630 4P 70kA 250A LSI
Moulded Case Circuit Breaker h630 4P 70kA 250A LSI
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu250 A
Rated voltage220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting100 - 250 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release1400 - 3250 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME800
STK3636537
PLC3636537
GTIN/EAN3250613349622
Manufacturer part numberHED251H
Vendor material number3636537
