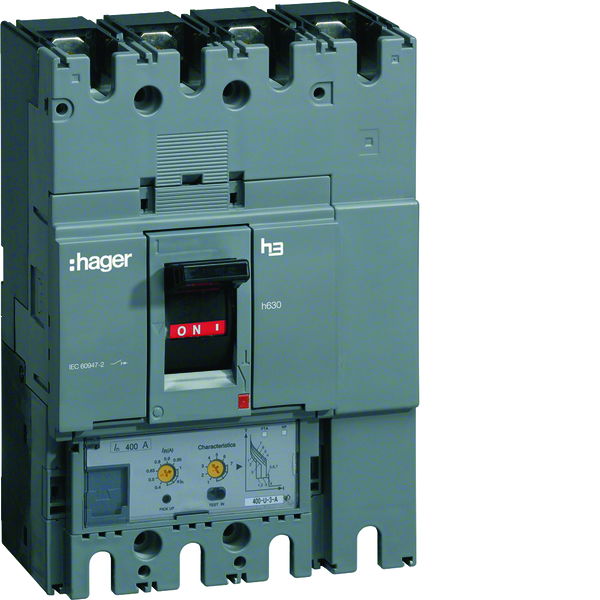

MOULDED CASE CIRCUIT BREAKER 4P 0%/50% 250 - 630A 70KA
Product code
3636539
MCCB h630 4P 70kA 630A LSI
Moulded Case Circuit Breaker h630 4P 70kA 630A LSI
Product details
Technical specifications
Product class (ETIM)Power circuit-breaker for trafo/generator/installation protection (EC000228)
Rated permanent current Iu630 A
Rated voltage220 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz70 kA
Overload release current setting250 - 630 A
Adjustment range short-term delayed short-circuit release0 - 0 A
Adjustment range undelayed short-circuit release3500 - 6300 A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionno
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingno
DIN rail (top hat rail) mounting optionalno
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorno
Product codes
SAPAME802
STK3636539
PLC3636539
GTIN/EAN3250613349646
Manufacturer part numberHED631H
Vendor material number3636539
Basic information
Package measurements (L x W x H)260 x 140 x 185 mm
Package volume6.734 l
Package weight9.3 kg
Base uniteach
Package units1 / 32
Package contents–
UNSPSC39121616
BrandHAGER
VendorUTU OY
