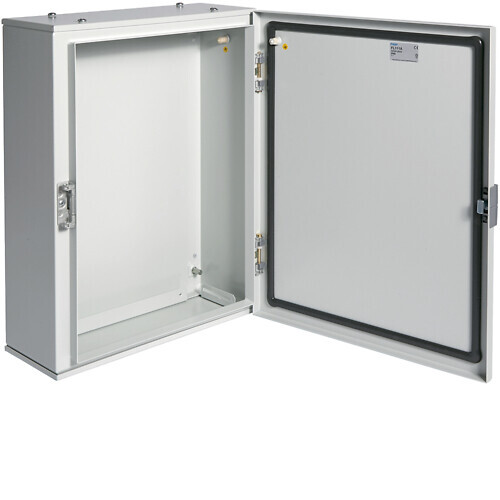

MOUNTING ENCLOSURE FE FL111A 500x400x160 IP65
Product code
3427011
Orion Plus distr. plain door 500X400X160
The metallic Orion Plus enclosure is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring a higher sealing class. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 500x400x160 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorno
With lockyes
Nominal current (In)630 A
Height500 mm
Width400 mm
Depth160 mm
Built-in depth160 mm
Inner depth160 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF118
STK3427011
PLC3427011
GTIN/EAN3250610674055
Manufacturer part numberFL111A
Vendor material number3427011
Basic information
Package measurements (L x W x H)180 x 420 x 550 mm
Package volume41.58 l
Package weight9.4 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.2912
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
