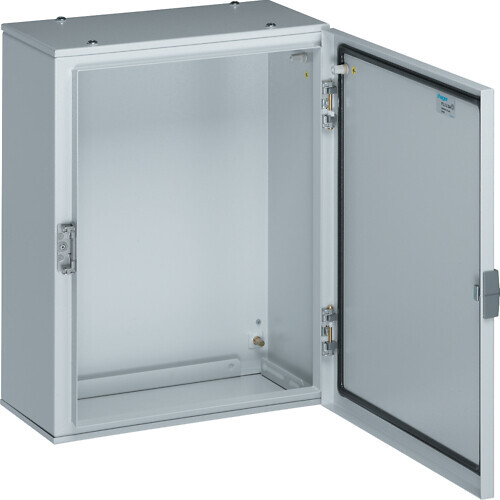

MOUNTING ENCLOSURE FE FL118A 650x400x250 IP65
Product code
3427018
Orion Plus distr. plain door 650X400X250
The metallic Orion Plus enclosure is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring a higher sealing class. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 650x400x250 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorno
With lockyes
Nominal current (In)630 A
Height650 mm
Width400 mm
Depth250 mm
Built-in depth250 mm
Inner depth245 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover21.5 mm
ColourGrey
Product codes
SAPAEF125
STK3427018
PLC3427018
GTIN/EAN3250610674086
Manufacturer part numberFL118A
Vendor material number3427018
Basic information
Package measurements (L x W x H)260 x 410 x 660 mm
Package volume70.356 l
Package weight14.1 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)711.0256
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
