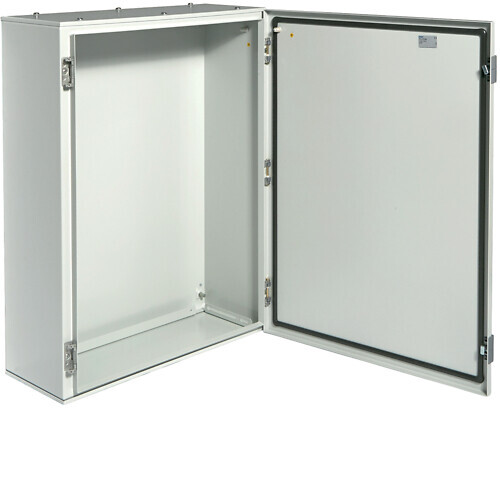

MOUNTING ENCLOSURE FE FL123A 800x600x250 IP65
Product code
3427023
Orion Plus distr. plain door 800X600X250
The metallic Orion Plus enclosure is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring a higher sealing class. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 800x600x250 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodOther
Type of coveringCover
Cover modelClosed
Type of doorSingle
Transparent cover/doorno
With lockyes
Nominal current (In)630 A
Height800 mm
Width600 mm
Depth250 mm
Built-in depth250 mm
Inner depth250 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover2 mm
ColourGrey
Product codes
SAPAEF130
STK3427023
PLC3427023
GTIN/EAN3250610674116
Manufacturer part numberFL123A
Vendor material number3427023
Basic information
Package measurements (L x W x H)265 x 615 x 835 mm
Package volume136.084 l
Package weight22 kg
Base uniteach
Package units1 / 16
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1109.4017
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
