MOUNTING ENCLOSURE FE FL126A 950x600x300 IP65
Product code
3427026
Orion Plus distr. plain door 950X600X300

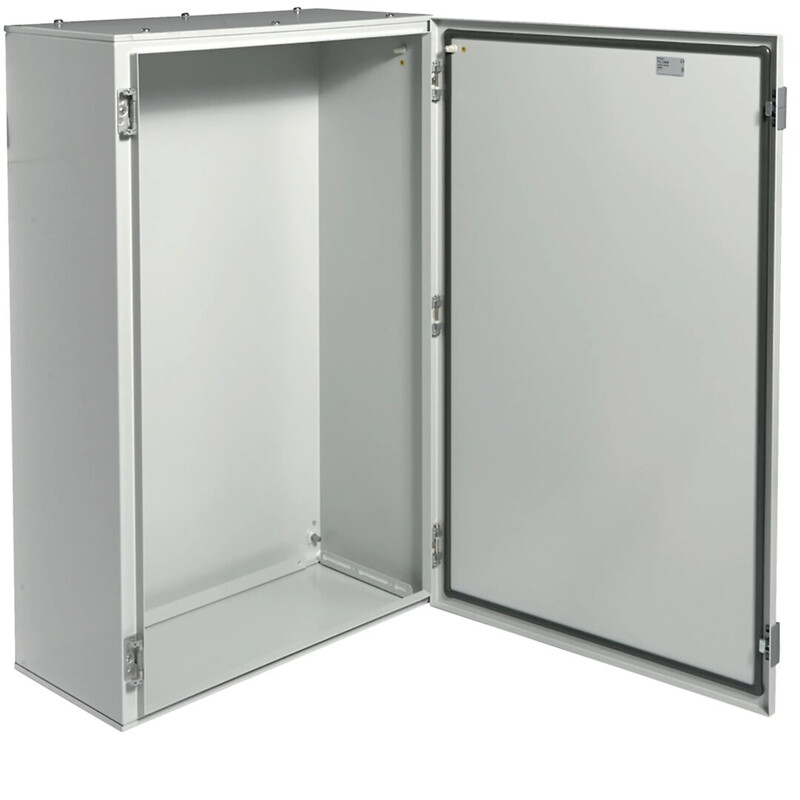

The metallic Orion Plus enclosure is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring a higher sealing class. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 950x600x300 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/doorno
With lockyes
Nominal current (In)630 A
Height950 mm
Width600 mm
Depth300 mm
Built-in depth300 mm
Inner depth295 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover21.5 mm
ColourGrey
Product codes
SAPAEF133
STK3427026
PLC3427026
GTIN/EAN3250610674123
Manufacturer part numberFL126A
Vendor material number3427026
Basic information
Package measurements (L x W x H)315 x 620 x 1000 mm
Package volume195.3 l
Package weight27 kg
Base uniteach
Package units1 / 16
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7087
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
