MOUNTING ENCLOSURE FE FL151A 250x200x160 IKKOVI IP65
Product code
3427032

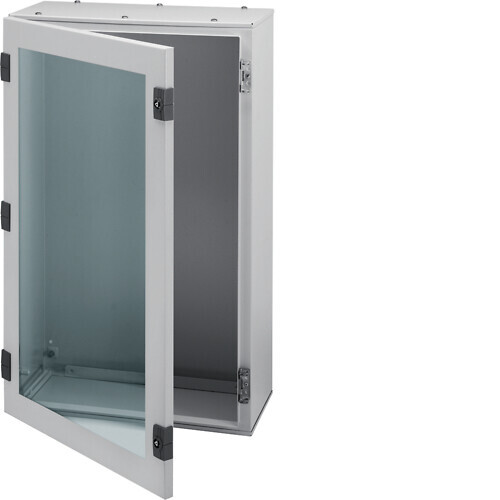

Orion Plus aut. glazed door 250X200X160
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring higher sealing classes, where the equipment behind the door needs to be visible without opening the enclosure. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 250x200x160 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelWith notch
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height250 mm
Width200 mm
Depth160 mm
Built-in depth160 mm
Inner depth160 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF138
STK3427032
PLC3427032
GTIN/EAN3250610674154
Manufacturer part numberFL151A
Vendor material number3427032
Basic information
Package measurements (L x W x H)185 x 225 x 295 mm
Package volume12.279 l
Package weight4.05 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0002
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
