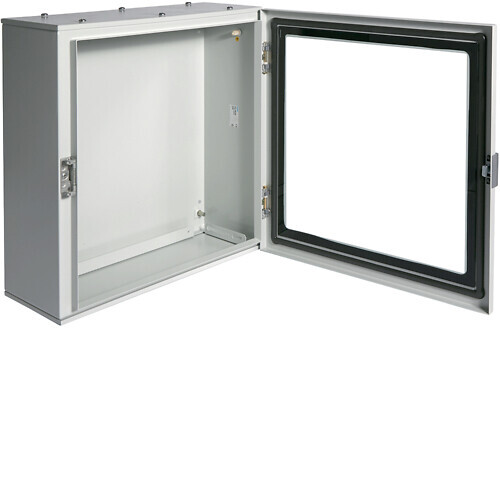

MOUNTING ENCLOSURE FE FL163A 500x500x200 IKKOVI IP65
Product code
3427044
Orion Plus distr. glaz. door 500X500X200
The metallic Orion Plus enclosure with a windowed door is well suited for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 500x500x200 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelWith notch
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height500 mm
Width500 mm
Depth200 mm
Built-in depth100 mm
Inner depth300 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF150
STK3427044
PLC3427044
GTIN/EAN3250610670705
Manufacturer part numberFL163A
Vendor material number3427044
Basic information
Package measurements (L x W x H)210 x 530 x 520 mm
Package volume57.876 l
Package weight12.5 kg
Base uniteach
Package units1 / 14
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0006
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
