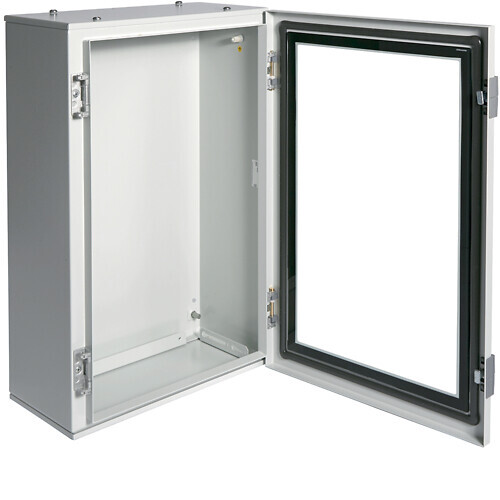

MOUNTING ENCLOSURE FE FL164A 600x400x200 IKKOVI IP65
Product code
3427045
Orion Plus aut. glazed door 600X400X200
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 600x400x200 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelWith notch
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height600 mm
Width400 mm
Depth200 mm
Built-in depth200 mm
Inner depth200 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF151
STK3427045
PLC3427045
GTIN/EAN3250610674215
Manufacturer part numberFL164A
Vendor material number3427045
Basic information
Package measurements (L x W x H)215 x 425 x 650 mm
Package volume59.394 l
Package weight12.12 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0006
GWP, uniteach
Source for GWP dataEPD
