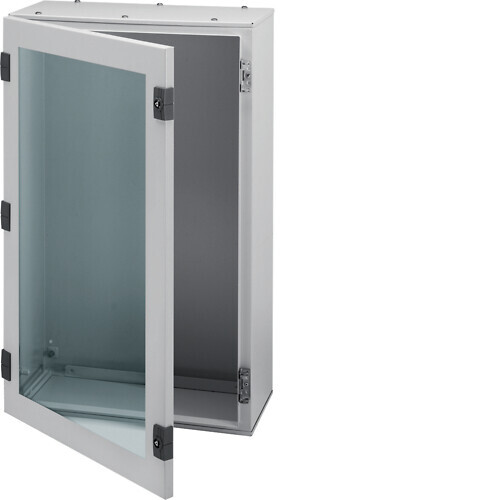

MOUNTING ENCLOSURE FE FL165A 600x400x250 IKKOVI IP65
Product code
3427046
Orion Plus aut. glazed door 600X400X250
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 600x400x250 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelWith notch
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height600 mm
Width400 mm
Depth250 mm
Built-in depth250 mm
Inner depth250 mm
Material plate thickness cabinet2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF152
STK3427046
PLC3427046
GTIN/EAN3250610674222
Manufacturer part numberFL165A
Vendor material number3427046
Basic information
Package measurements (L x W x H)270 x 420 x 655 mm
Package volume74.277 l
Package weight13.5 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
