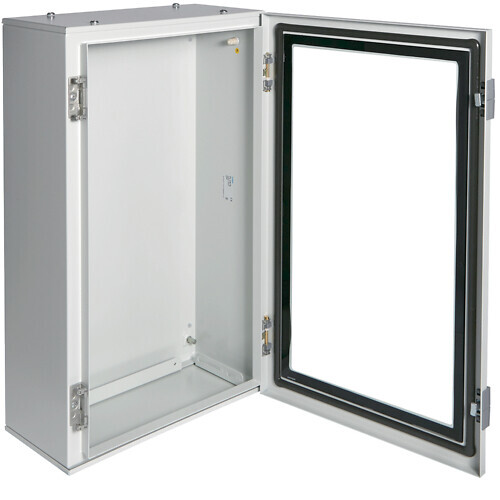

MOUNTING ENCLOSURE FE FL167A 650x400x200 IKKOVI IP65
Product code
3427048
Orion Plus distr. glaz. door 650X400X200
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring higher sealing classes, where the equipment behind the door needs to be visible without opening the enclosure. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 650x400x200 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height650 mm
Width400 mm
Depth200 mm
Built-in depth200 mm
Inner depth200 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover21.5 mm
ColourGrey
Product codes
SAPAEF154
STK3427048
PLC3427048
GTIN/EAN3250610670729
Manufacturer part numberFL167A
Vendor material number3427048
Basic information
Package measurements (L x W x H)225 x 425 x 675 mm
Package volume64.547 l
Package weight12.7 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.7445
GWP, uniteach
Source for GWP dataEPD
