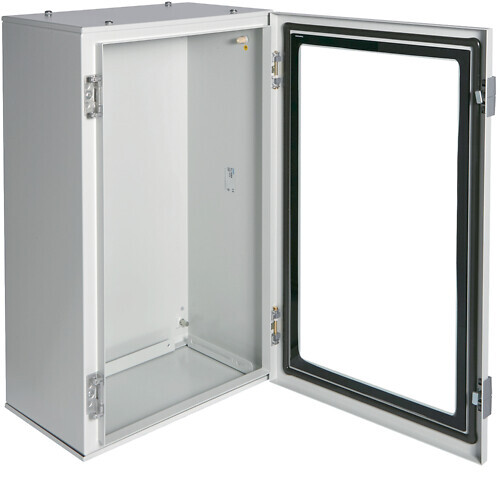

MOUNTING ENCLOSURE FE FL168A 650x400x250 IKKOVI IP65
Product code
3427049
Orion Plus distr. glaz. door 650X400X250
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring higher sealing class, where the equipment behind the door can be viewed without opening the enclosure. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 650x400x250 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height650 mm
Width400 mm
Depth250 mm
Built-in depth250 mm
Inner depth245 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover21.5 mm
ColourGrey
Product codes
SAPAEF155
STK3427049
PLC3427049
GTIN/EAN3250610674239
Manufacturer part numberFL168A
Vendor material number3427049
Basic information
Package measurements (L x W x H)260 x 410 x 660 mm
Package volume70.356 l
Package weight14 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
