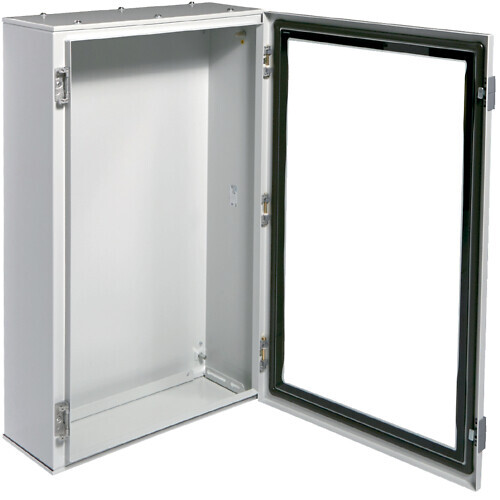

MOUNTING ENCLOSURE FE FL171A 800x500x200 IKKOVI IP65
Product code
3427052
Orion Plus distr. glaz. door 800X500X200
The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 800x500x200 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height800 mm
Width500 mm
Depth200 mm
Built-in depth200 mm
Inner depth200 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF158
STK3427052
PLC3427052
GTIN/EAN3250610670743
Manufacturer part numberFL171A
Vendor material number3427052
Basic information
Package measurements (L x W x H)225 x 525 x 825 mm
Package volume97.453 l
Package weight17 kg
Base uniteach
Package units1 / 7
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
