MOUNTING ENCLOSURE FE FL173A 800x600x250 IKKOVI IP65
Product code
3427054
Orion Plus distr. glaz. door 800X600X250

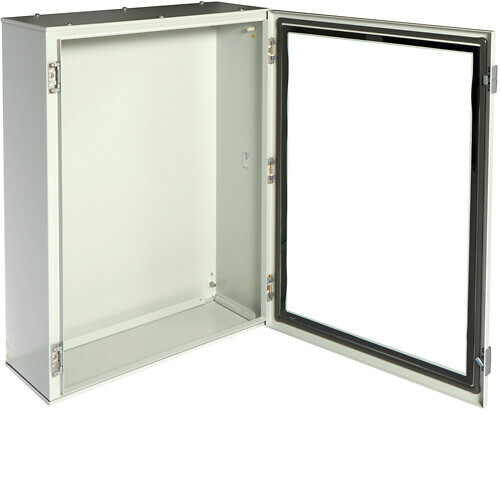

The metallic Orion Plus enclosure with a windowed door is suitable for demanding industrial and commercial building distribution, grouping, and automation center installations requiring higher sealing class, where the equipment behind the door can be viewed without opening the enclosure. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 800x600x250 mm and a sealing class of IP65. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height800 mm
Width600 mm
Depth250 mm
Built-in depth250 mm
Inner depth250 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF160
STK3427054
PLC3427054
GTIN/EAN3250610674260
Manufacturer part numberFL173A
Vendor material number3427054
Basic information
Package measurements (L x W x H)265 x 620 x 845 mm
Package volume138.834 l
Package weight22 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1109.4017
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
