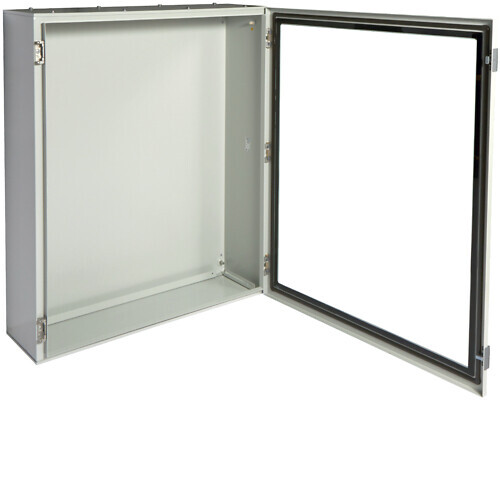

MOUNTING ENCLOSURE FE FL177A 950x800x250 IKKOVI IP65
Product code
3427058
Orion Plus distr. glaz. door 950X800X250
The metallic Orion Plus enclosure with a windowed door is well suited for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 950x800x250 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height950 mm
Width800 mm
Depth250 mm
Built-in depth250 mm
Inner depth250 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF164
STK3427058
PLC3427058
GTIN/EAN3250610674284
Manufacturer part numberFL177A
Vendor material number3427058
Basic information
Package measurements (L x W x H)265 x 835 x 995 mm
Package volume220.169 l
Package weight30 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0014
GWP, uniteach
Source for GWP dataEPD
