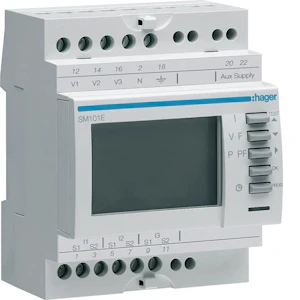

MULTI-METER SM101E I/U/V/F/P/PF/H DIN
Product code
6773522
Modular multifunction meter
Modular multifunction meter
Product details
Technical specifications
Ampere metertrue
Blind power metertrue
With rotational speed meterfalse
Frequency metertrue
Pulse counterfalse
Voltmetertrue
Effective power measurement devicetrue
Number of voltage measurement inputs4
Number of current measurement inputs3
Voltage type of supply voltageAC
Supply voltage AC 50 Hz200 ... 277 V
Supply voltage AC 60 Hz200 ... 277 V
Measuring range for frequency45 ... 65 Hz
Remote displayfalse
Number of analogue inputs7
Product codes
SAPAMP091
PLC6773522
STK6773522
GTIN/EAN3250615631015
Manufacturer part numberSM101E
Vendor material number6773522
Basic information
Package measurements (L x W x H)80 x 100 x 80 mm
Package volume0.64 l
Package weight0.21 kg
Base uniteach
Package units1 / 24 / 576
Package contents–
UNSPSC41111917
BrandHAGER
