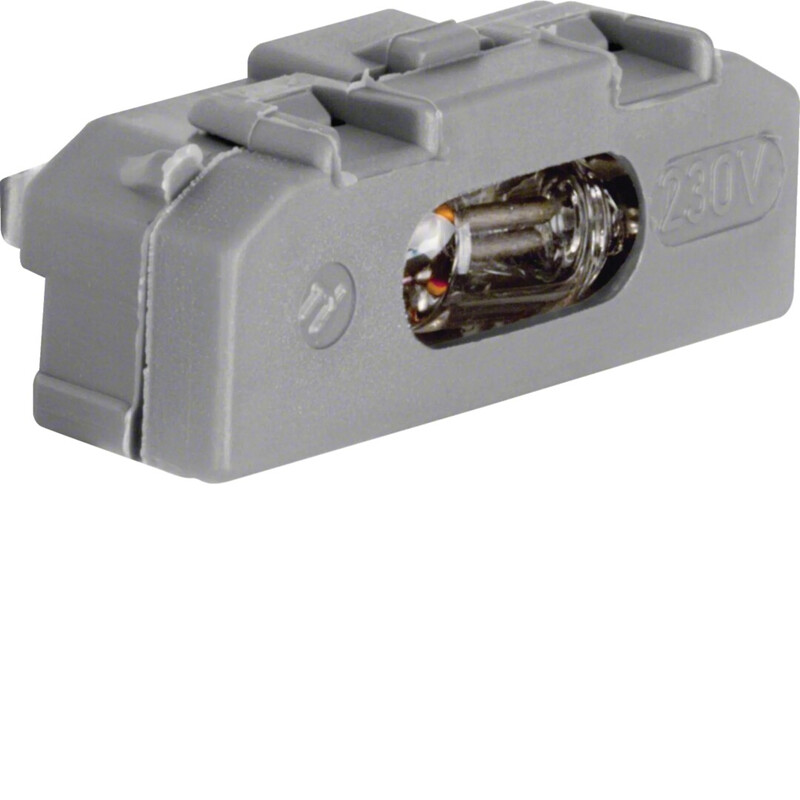

NEON LAMP NEON 230VAC 0.9MA
Product code
2110939
Neon lamp unit Module inserts grey
Glow lamp module for search and control lighting for switches and push buttons 303212, 65303808, 503404, and 503808. When using multiple neon glow lamp units, the lamp current may cause relay/pulse relay malfunction. Correction: Connect a capacitor of 230 V (1 µF per 10 mA lamp current) in parallel with the coil. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Illumination insert for domestic switching devices (EC000199)
ApplicationSwitch/push button
Lamp typeGlow lamp
With light sourceyes
Colour light sourceOrange
Lamp holderOther
Nominal current0.001 A
Product codes
SAPASH090
STK2110939
PLC2110939
GTIN/EAN4011334219286
Manufacturer part number160002
Vendor material number2110939
Basic information
Package measurements (L x W x H)20 x 100 x 80 mm
Package volume0.16 l
Package weight0.002 kg
Base uniteach
Package units1 / 10 / 38400
Package contents–
UNSPSC39121304
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0003
GWP, uniteach
Source for GWP dataEPD
