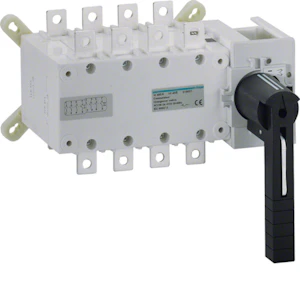

NET CHANGE-OVER SWITCH HI456 4P 1-0-2 400A 690VAC
Product code
3637594
Change-over switch 4P 400A
4-pole rotary switch 1-0-2 400A Un = 400 / 690 V AC, mounted on mounting panel by screw fastening, to supply the load circuit with two mutually safety-isolated low-voltage circuits.
Features- safety isolation
- 3 switching positions I - 0 - II
- mounting on mounting panel
- compact construction
- IP 20
- standards: IEC EN 60947-3
- knob for panel mounting
- auxiliary contact
- busbar for outputs
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchyes
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage380-690 V
Rated permanent current Iu400 A
Rated permanent current at AC-23, 400 V400 A
Rated permanent current at AC-21, 400 V400 A
Rated operation power at AC-3, 400 V220 kW
Rated short-time withstand current lcw15 kA
Rated operation power at AC-23, 400 V180 kW
Switching power at 400 V263 kW
Product codes
SAPAMF018
STK3637594
PLC3637594
GTIN/EAN3250613190040
Manufacturer part numberHI456
Vendor material number3637594
Basic information
Package measurements (L x W x H)218 x 170 x 312 mm
Package volume11.563 l
Package weight6.32 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.8681
GWP, uniteach
Source for GWP dataEPD
