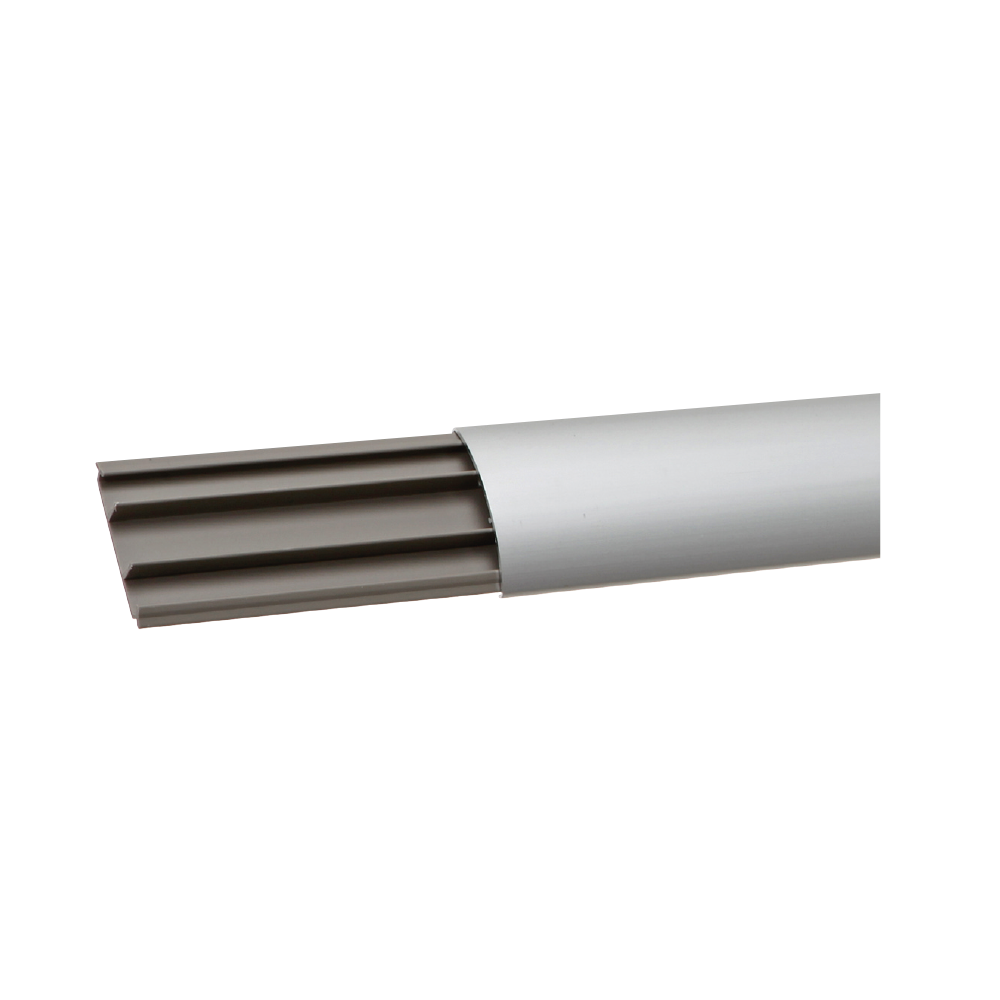

ON-FLOOR INSTALLATION TRUNKING AKA50120 PVC/AL 12X50X2000 AN
Product code
1461287
Threshold strip with three conductor channels, body made of PVC, cover made of anodized aluminum, body size 12x50 with rounded cover. The channel easily protects cables running along the floor from stresses caused by foot traffic. The separate conductor channels in the channel allow separation of cables from different cabling systems. The channel can be fixed to the floor with adhesive tape or screws depending on the intended use and floor surface. The strip can also be used for wall mounting to conceal AV device cables.
Features
- Material: Aluminum / PVC
- Halogen-free: no

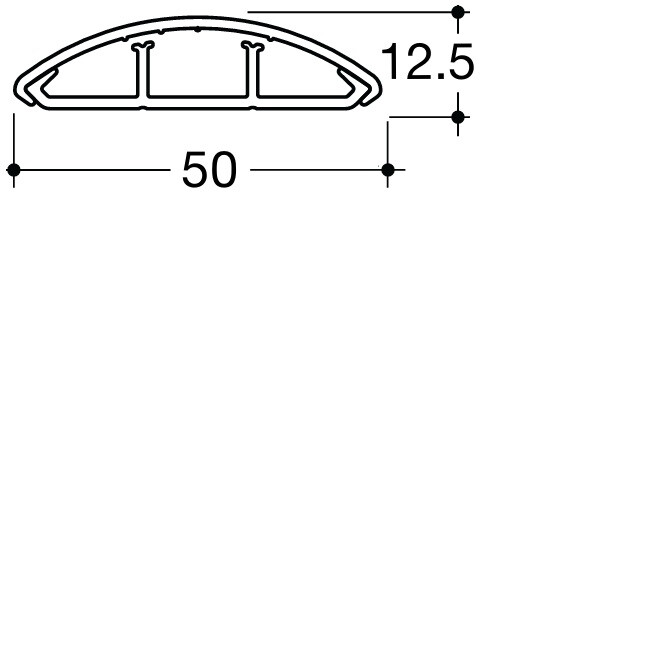

- Channel height: 12 mm
- Channel width: 50 mm
- Length: 2000 mm
- Number of cable channels: 3 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)On-floor installation duct (EC000722)
Width50 mm
Height12 mm
Length2000 mm
Number of channels3
MaterialOther
ColourOther
Self-adhesiveno
Sealing lipno
With anti-slip layerno
Halogen freeno
Product codes
SAPCBW476
STK1461287
PLC1461287
GTIN/EAN4012740896849
Manufacturer part numberAKA50120ALU
Vendor material number1461287
Basic information
Package measurements (L x W x H)1000 x 50 x 12 mm
Package volume1.2 l
Package weight0.18 kg
Base unitMeter
Package units2 / 16 / 1616
Package contents–
UNSPSC39121303
BrandHAGER
VendorUTU OY
