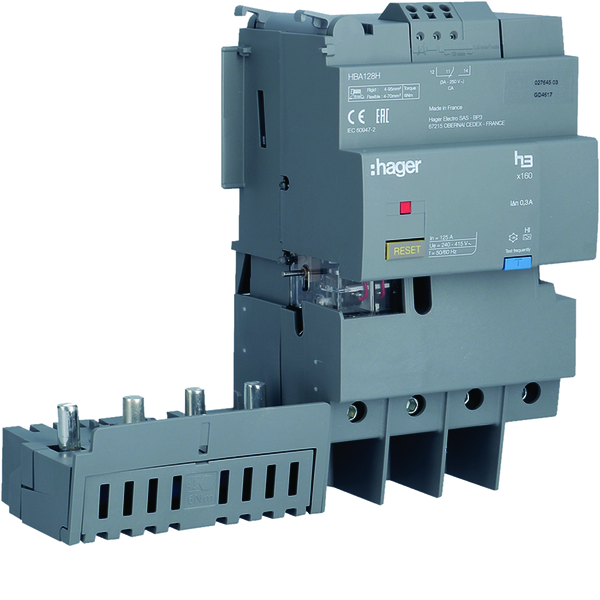

OVER VOLTAGE PROTECTION X160 4P 125A IDN FIX
Product code
3637320
RCD add on x160 4P 125A Idn fix
Electronic earth leakage add-on block 4P 125A Sensitivity fix
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage220 - 415 V
Nominal current125 A
Rated fault current adjustableno
Rated fault current0.3 - 0.3 A
Delay adjustableno
Number of poles4
Leakage current typeOther
Surge current capacity5 kA
Frequency50/60 Hz
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Connectable conductor cross section solid-core2.5 - 95 mm²
Connectable conductor cross section multi-wired2.5 - 70 mm²
Anti-nuisance tripping versionyes
With interlocking deviceyes
Product codes
SAPAME840
STK3637320
PLC3637320
GTIN/EAN3250613121075
Manufacturer part numberHBA128H
Vendor material number3637320
Basic information
Package measurements (L x W x H)165 x 107 x 200 mm
Package volume3.531 l
Package weight16.1 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
