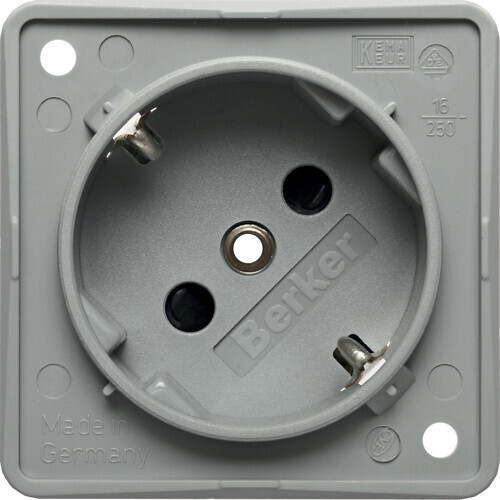

SOCKET OUTLET INTEGRO FLOW 1S/16A/250V 45AST UKJ GRAY
Product code
2507651
SCHUKO socket 45°, SNAP IN 1.8 mm - Elevated touch protection - Screw terminals Nominal voltage 250 VAC Nominal current 16 A Mounting surface thickness 1.8 mm (± 0.2 mm) Not suitable for touch protection sockets (lightweight partition walls). Terminal connections according to IEC 60884-1 Elevated touch protection (child protection) according to IEC 60884-1? distance sealing ring? angled mounting - mounting to surface with snap-in, securing the attachment possible with angled screws This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Imprint/indicationNone
Connection typeScrewed terminal
With enhanced contact protectionyes
ColourGrey
Mounting methodBuilt-in
MaterialPlastic
Material qualityThermoplastic
Halogen freeyes
Nominal current16 A
Nominal voltage250 V
Suitable for degree of protection (IP)IP20
Device width55.5 mm
Device height55.5 mm
Device depth42 mm
Product codes
SAPCZX666
STK2507651
PLC2507651
GTIN/EAN4011334282334
Manufacturer part number841402506
Vendor material number2507651
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.09 l
Package weight0.045 kg
Base uniteach
Package units200
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0027
GWP, uniteach
Source for GWP dataEPD
