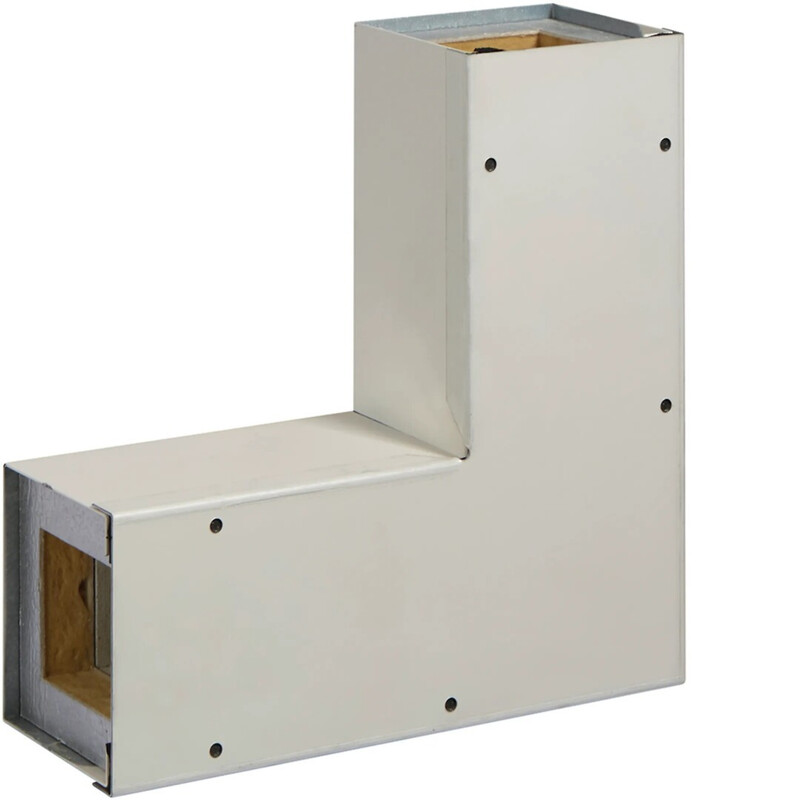

PLANE CORNER TEHALIT R3025 FWK3E 50X60 T.WHITE
Product code
1476167
Flat elbow for fire protection duct FWK3E5006009016 for direction changes in fire protection duct installations. The fitting is equipped with female flanges for duct connections. Surface material: steel with fire-protective gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for fire-resistant duct (EC002660)
Angle90 °
Outer height88 mm
Outer width100 mm
Inner height50 mm
Inner width59 mm
Usable cross section2950 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS435
STK1476167
PLC1476167
GTIN/EAN4012740020053
Manufacturer part numberR30259016
Vendor material number1476167
Basic information
Package measurements (L x W x H)250 x 250 x 90 mm
Package volume5.625 l
Package weight4.77 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
