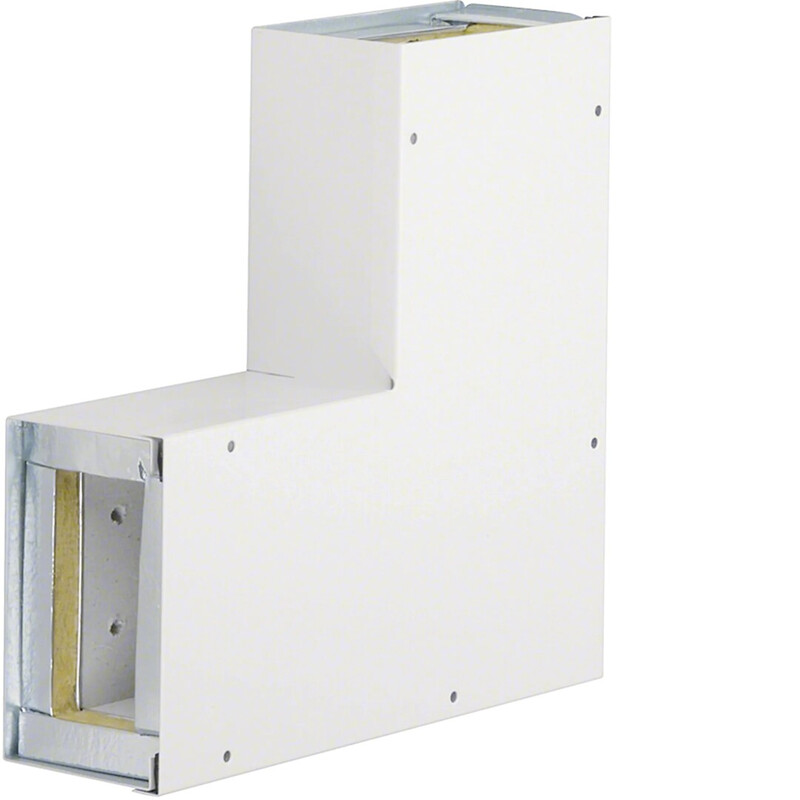

PLANE CORNER TEHALIT R3035 FWK3E 50X110 T.WHITE
Product code
1476173
Flat elbow for fire protection duct FWK3E5011009016 for direction changes in fire protection duct installations. The fitting is equipped with female flanges for duct connections. Surface material: steel with fire-protective gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for fire-resistant duct (EC002660)
Angle90 °
Outer height88 mm
Outer width150 mm
Inner height50 mm
Inner width109 mm
Usable cross section5450 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS441
STK1476173
PLC1476173
GTIN/EAN4012740020114
Manufacturer part numberR30359016
Vendor material number1476173
Basic information
Package measurements (L x W x H)300 x 300 x 90 mm
Package volume8.1 l
Package weight5.75 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
