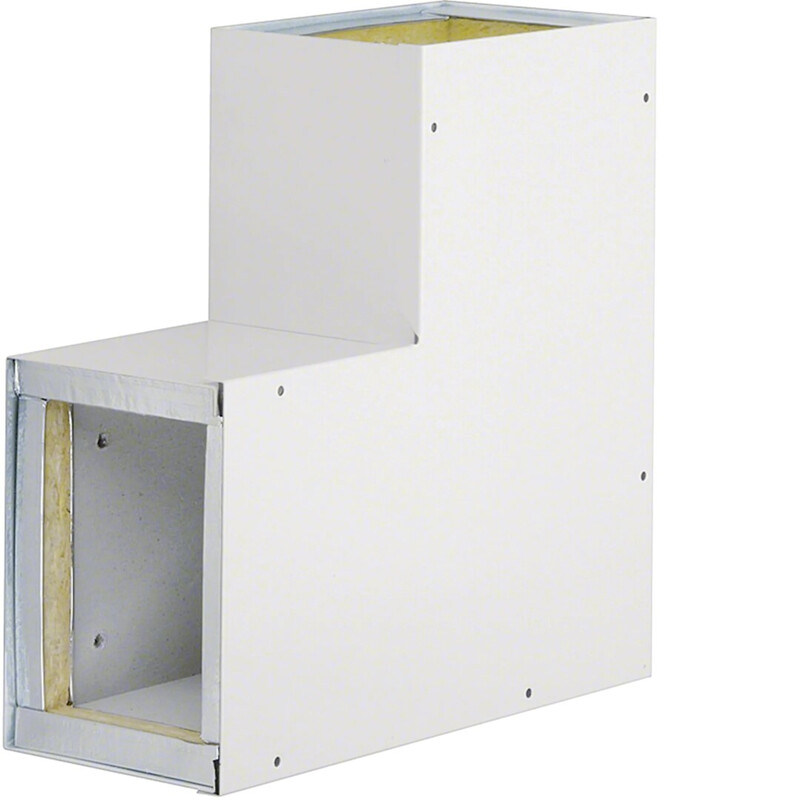

PLANE CORNER TEHALIT R3055 FWK3E 102X160 T.WHITE
Product code
1476185
Flat elbow for fire protection duct FWK3E9916009016 for changes in direction in fire protection duct installations. The fitting is equipped with female flanges for duct connections. Surface material is steel with fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for fire-resistant duct (EC002660)
Angle90 °
Outer height142 mm
Outer width200 mm
Inner height102 mm
Inner width159 mm
Usable cross section16218 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS452
STK1476185
PLC1476185
GTIN/EAN4012740020237
Manufacturer part numberR30559016
Vendor material number1476185
Basic information
Package measurements (L x W x H)350 x 350 x 142 mm
Package volume17.395 l
Package weight9.98 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
