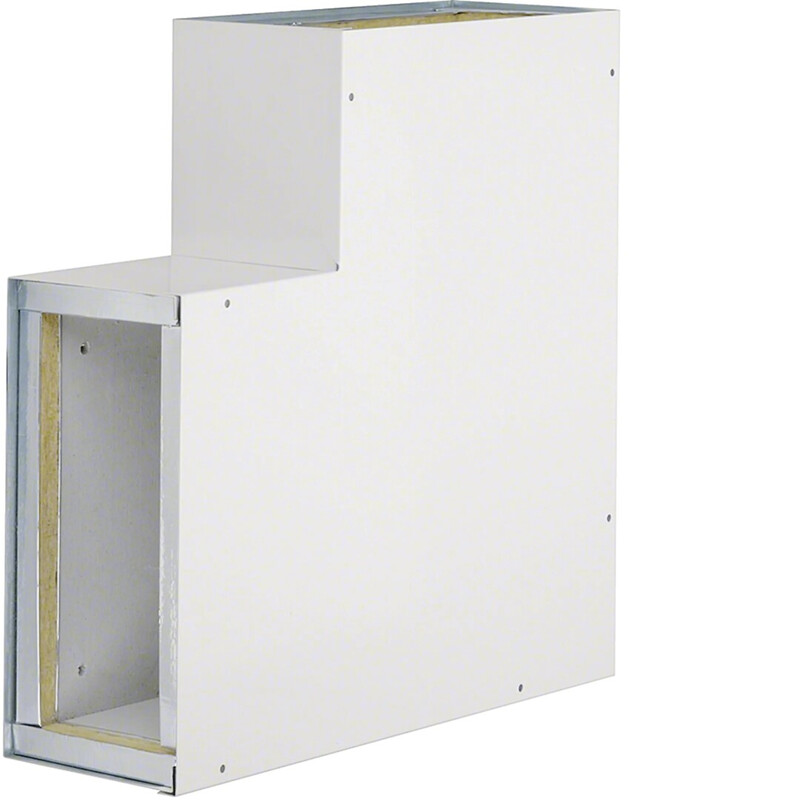

PLANE CORNER TEHALIT R3065 FWK3E 102X260 T.WHITE
Product code
1476191
Flat elbow for fire protection duct FWK3E9926009016 for direction changes in fire protection duct installations. The fitting is equipped with female sockets for duct connections. Surface material: steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for fire-resistant duct (EC002660)
Angle90 °
Outer height142 mm
Outer width300 mm
Inner height102 mm
Inner width259 mm
Usable cross section26418 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS458
STK1476191
PLC1476191
GTIN/EAN4012740020299
Manufacturer part numberR30659016
Vendor material number1476191
Basic information
Package measurements (L x W x H)450 x 450 x 142 mm
Package volume28.755 l
Package weight15.42 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
