PROTECTION BOX INTEGRO FLOW 1-FOLD D45MM L 35.5MM GRAY
Product code
1105701

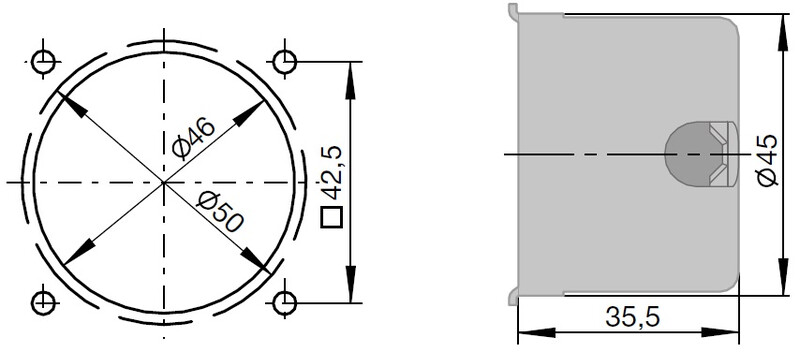

Touch-proof enclosure with 45 mm cable gland, for integrated mounting frames, gray, maximum cable diameter 10 mm, mounting depth 35.5 mm. Flame-retardant according to VDE0606-1. For switches and sockets. Equipped with four cable entries. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for built-in mounting in the wall/ceiling (EC002601)
Mounting methodHollow wall
ShapeRound
Construction typeBuilt-in installation box (device box)
ModelSingle
Provided with revolving ringno
Couplableno
Equipped withNone
Diameter45 mm
Width45 mm
Depth35.5 - 35.5 mm
Inner depth35.5 mm
For number of electric fittings1
Mounting switching equipmentScrewing
With screwsno
Suitable for cable diameter12 - 12 mm
Product codes
SAPCVC189
STK1105701
PLC1105701
GTIN/EAN4011334053125
Manufacturer part number91820
Vendor material number1105701
Basic information
Package measurements (L x W x H)45 x 45 x 37 mm
Package volume0.075 l
Package weight0.009 kg
Base uniteach
Package units1 / 200 / 200 / 8000
Package contents–
UNSPSC40141914
BrandHAGER
VendorUTU OY
