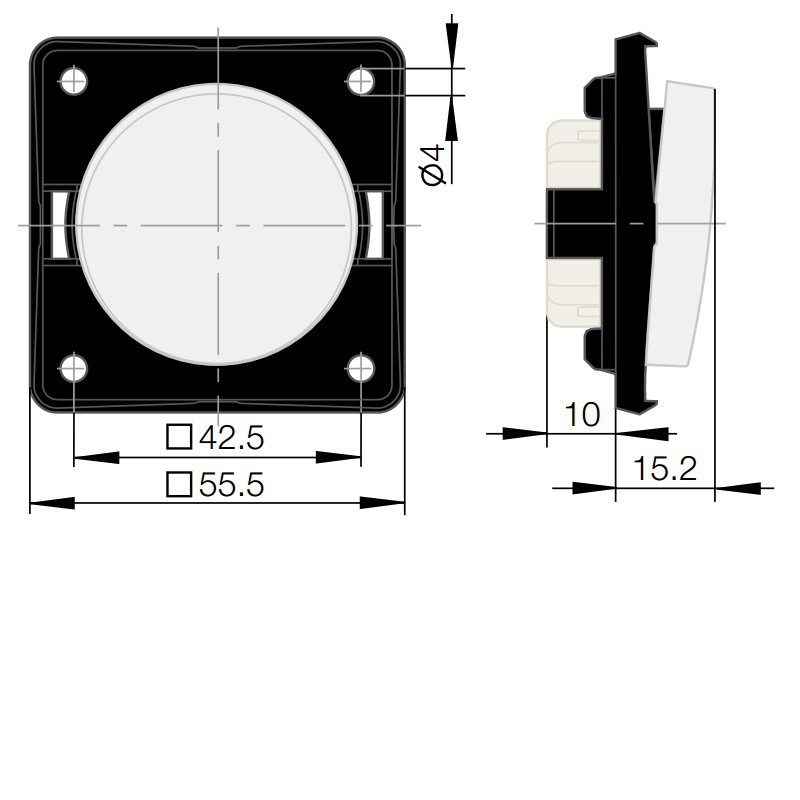

PUSH BUTTON INTEGRO FLOW 1/10A/250V SL UKR WHITE
Product code
2115266
Button with illuminated indicator, touch-sensitive switch - red lens Rated voltage 250 VAC Glow lamp current 0.9 mA Momentary switch current 10 A When using multiple neon glow lamp units, the lamp current may cause relay/pulse relay malfunction. Correction: Connect the neutral conductor or connect a capacitor 230 V (1 µF per 10 mA neon glow lamp current) in parallel with the coil. ? For lighting and monitoring circuits ? With integrated glow lamp This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push button (EC000029)
Assembly arrangementBasic element with central cover plate
ModelSingle push button
Method of operationRocker
Number of rockers1
Number of modules (module system)0
Number of poles1
Nominal voltage250 V
Rated current10 A
With lightingyes
With signal lampno
Monitoring contactno
Connection typeScrewed terminal
Mounting methodBuilt-in
Type of fasteningScrew mounting
MaterialPlastic
Product codes
SAPCVC782
STK2115266
PLC2115266
GTIN/EAN4011334240303
Manufacturer part number937722509
Vendor material number2115266
Basic information
Package measurements (L x W x H)55.5 x 55.5 x 24.1 mm
Package volume0.074 l
Package weight0.04 kg
Base uniteach
Package units10 / 5000
Package contents–
UNSPSC39121310
BrandHAGER
VendorUTU OY
